Offset Drop Mount
$120.00
Sale price
$120.00
Regular price
Shipping calculated at checkout.
Upright Size (Width × Depth)

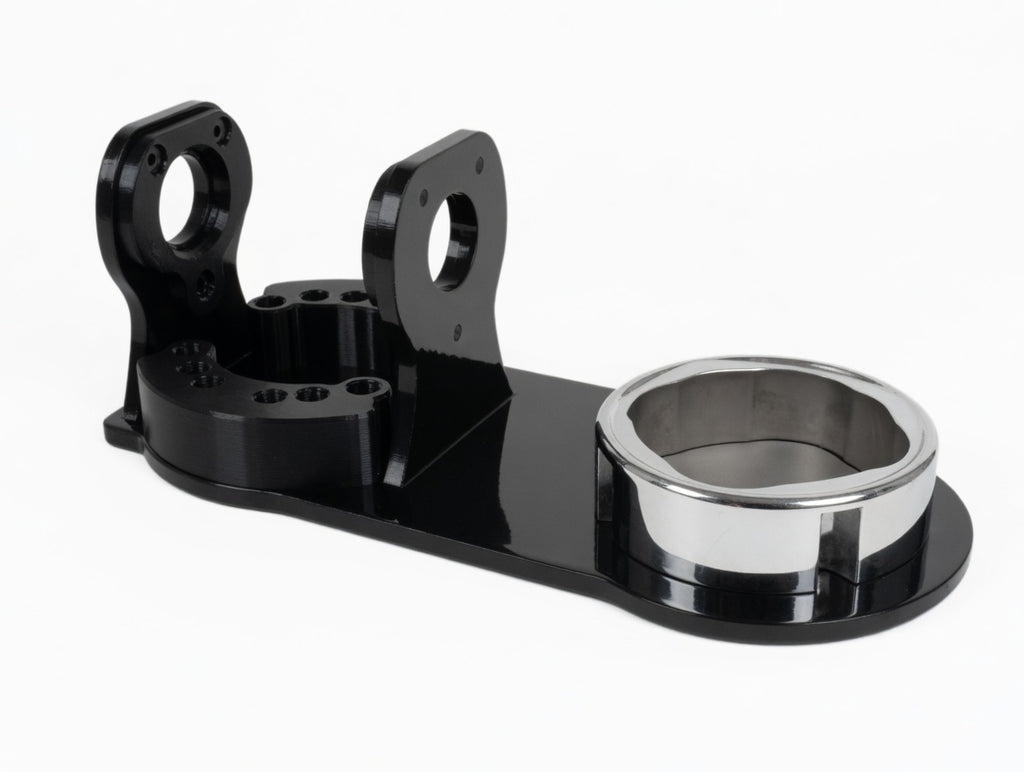

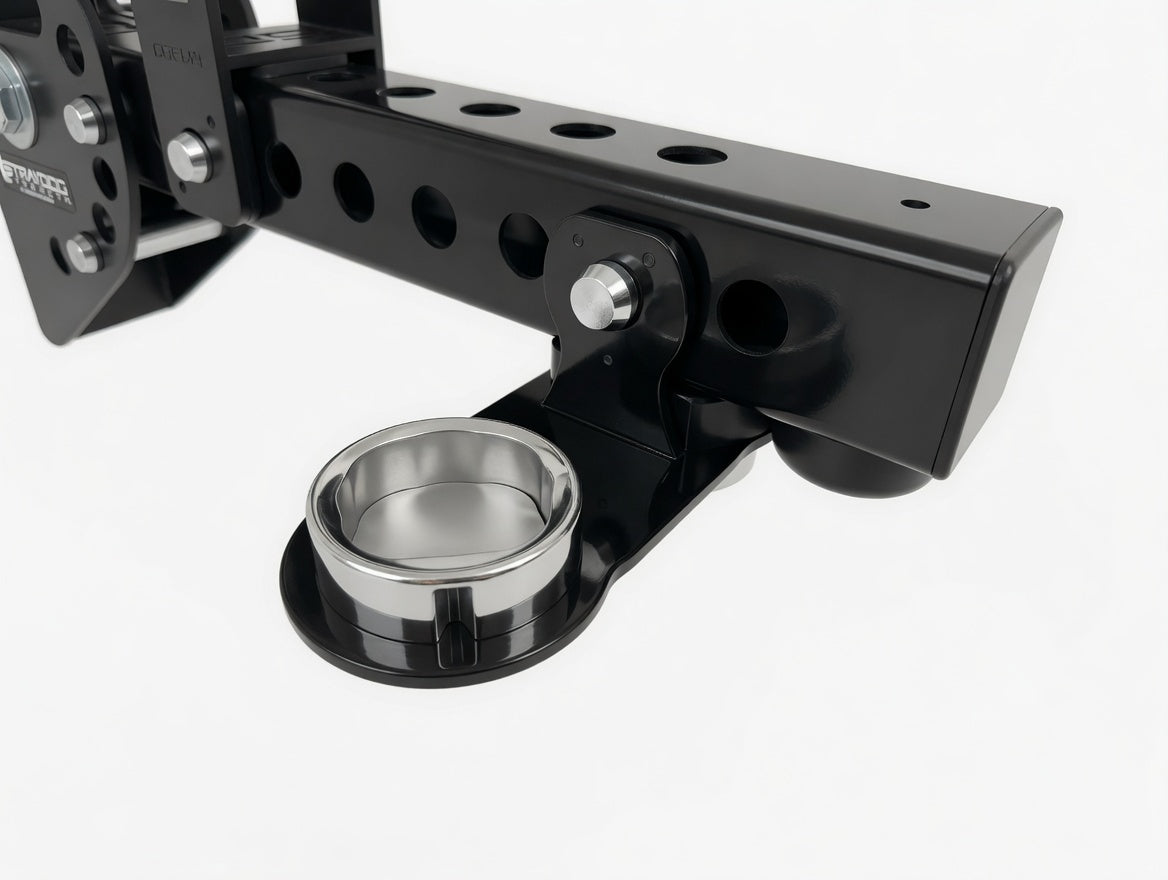

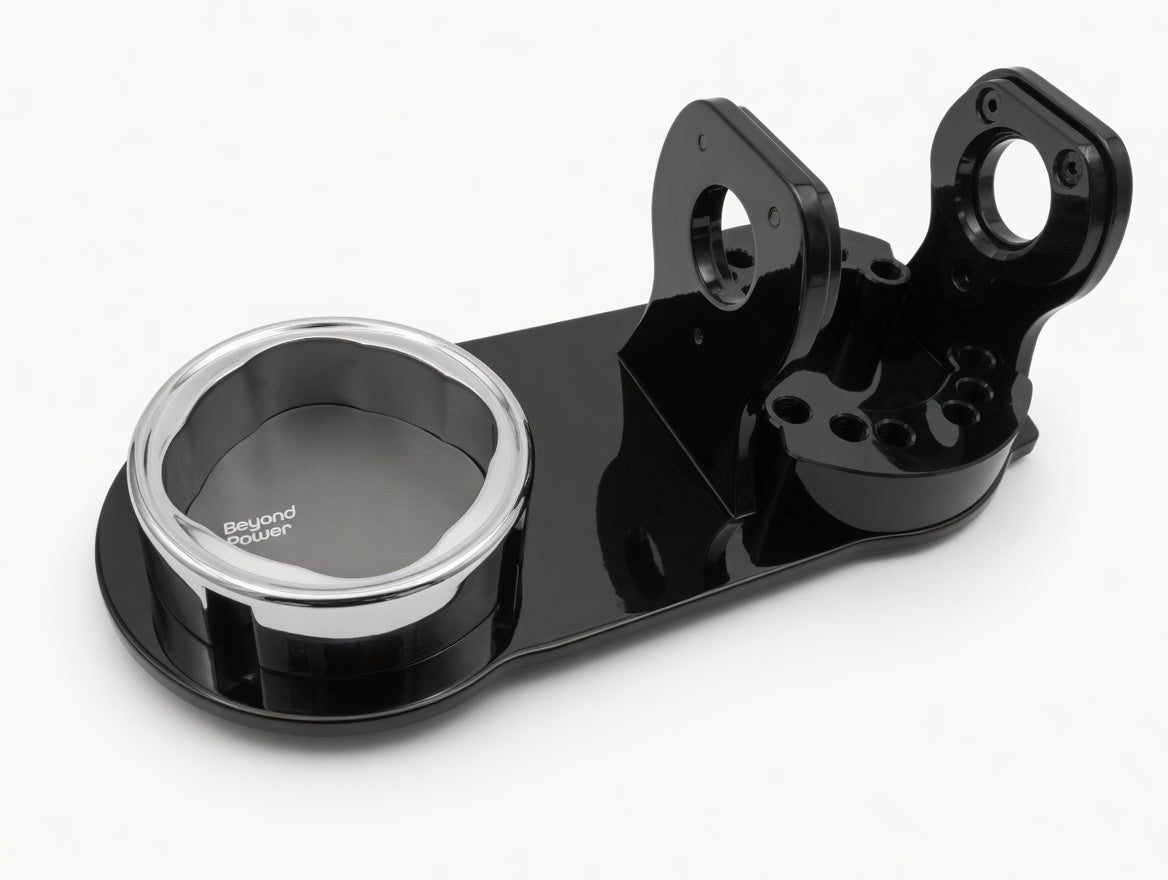

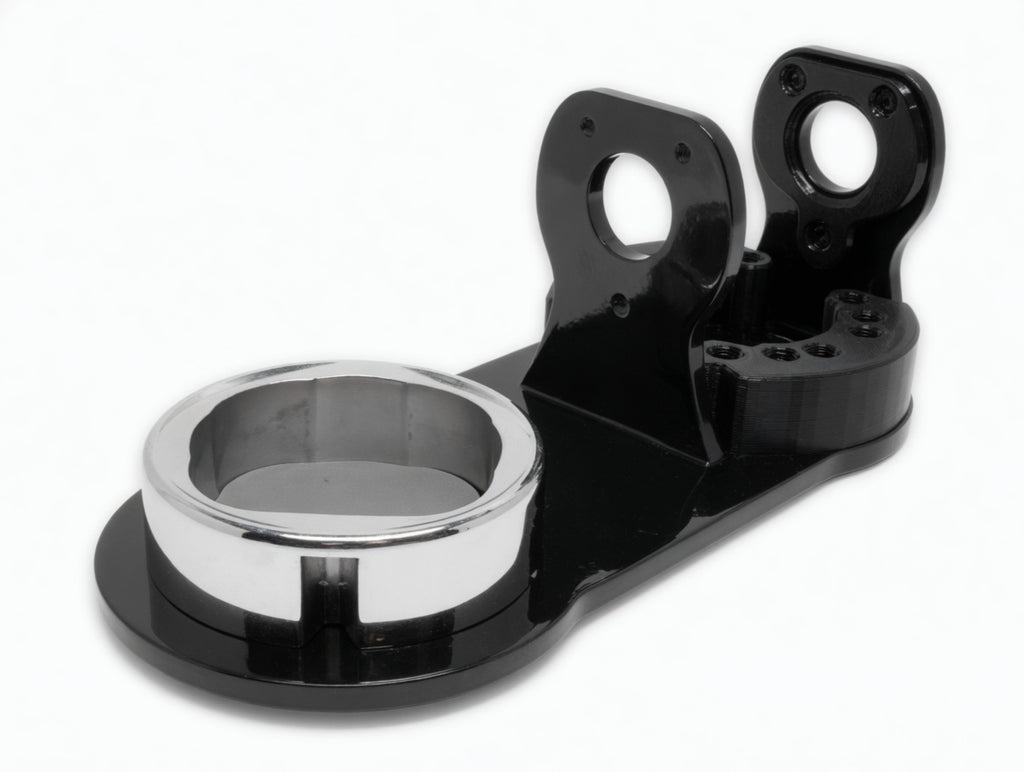

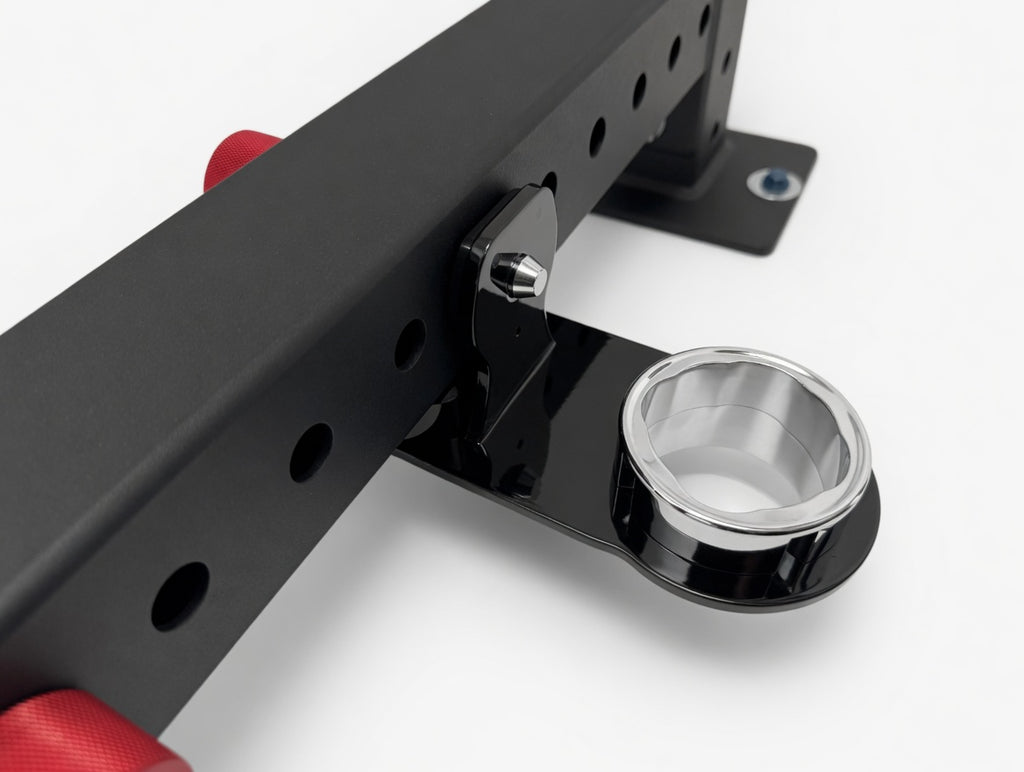

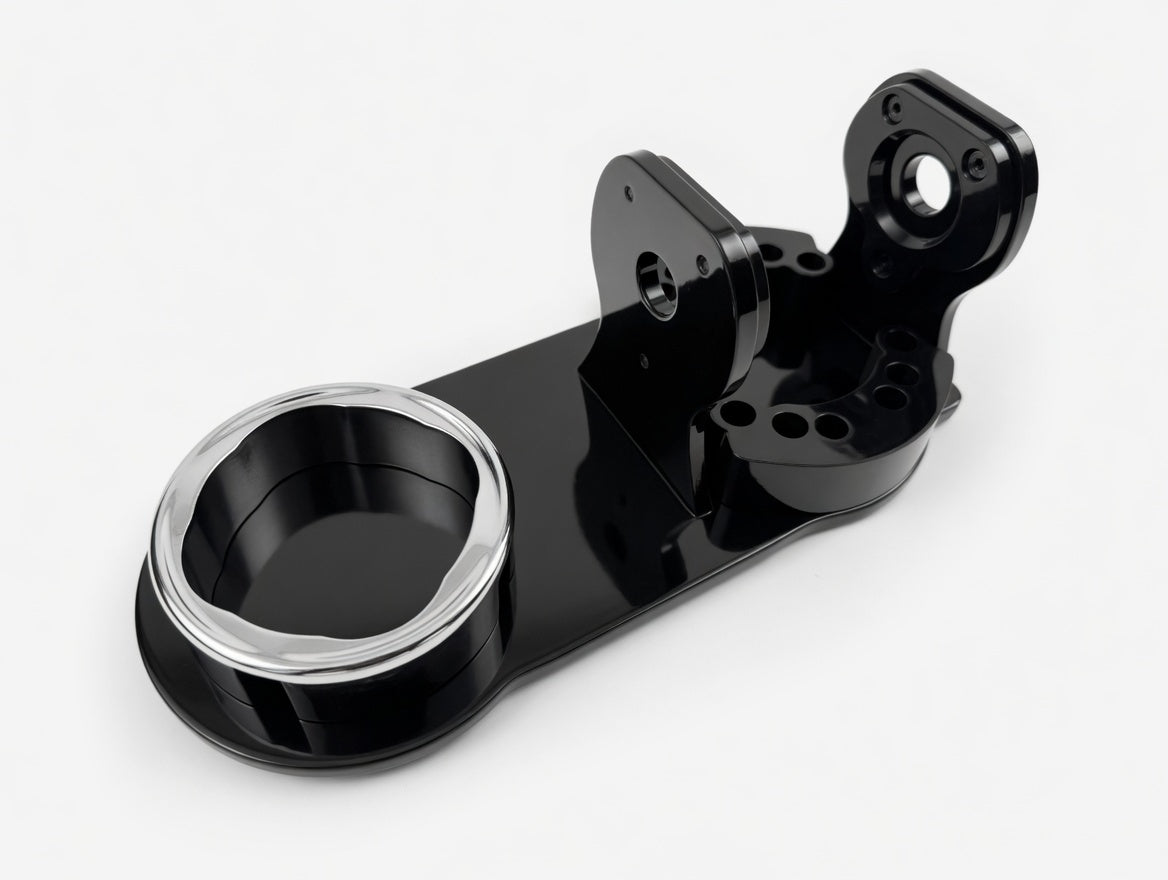

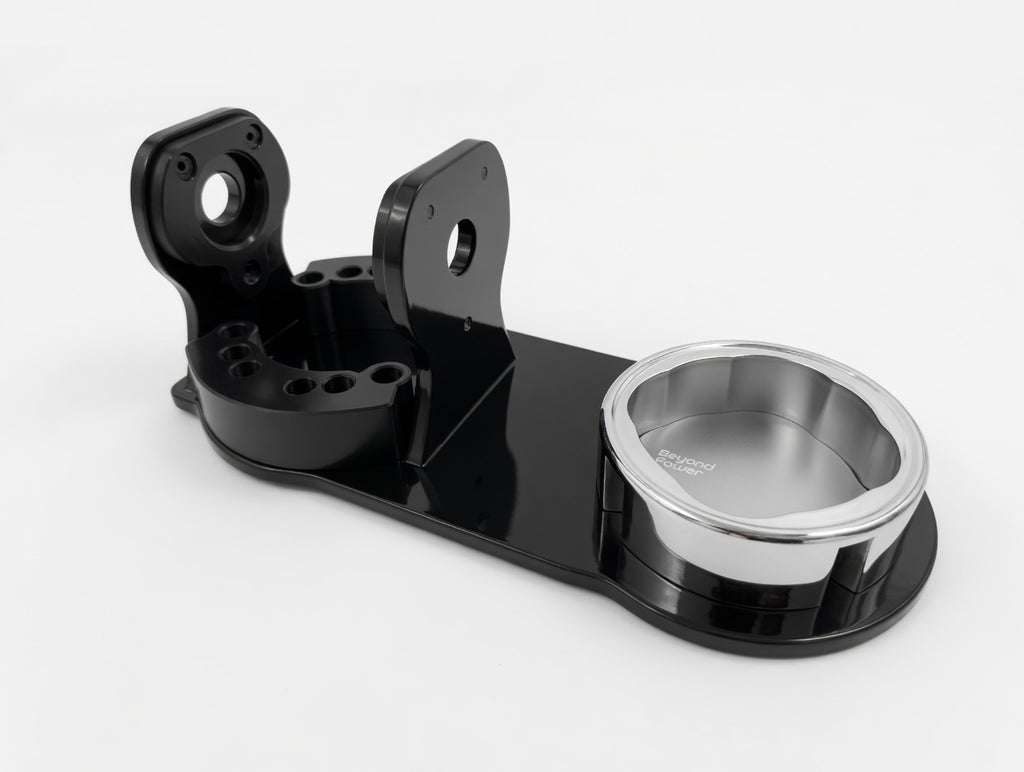

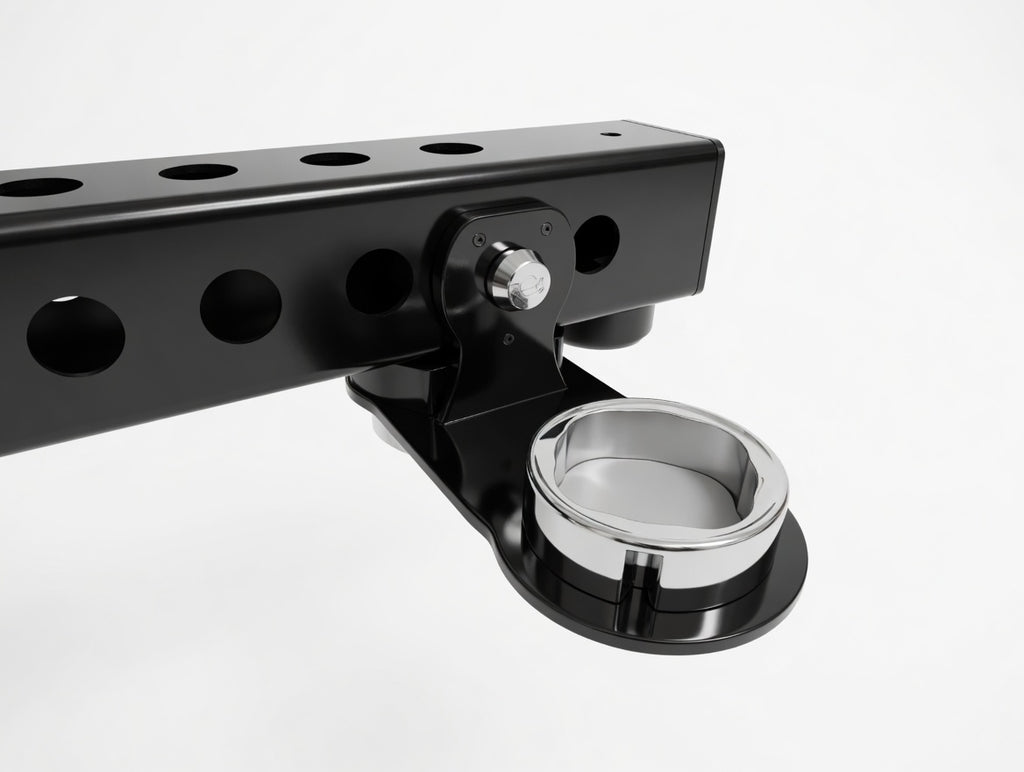

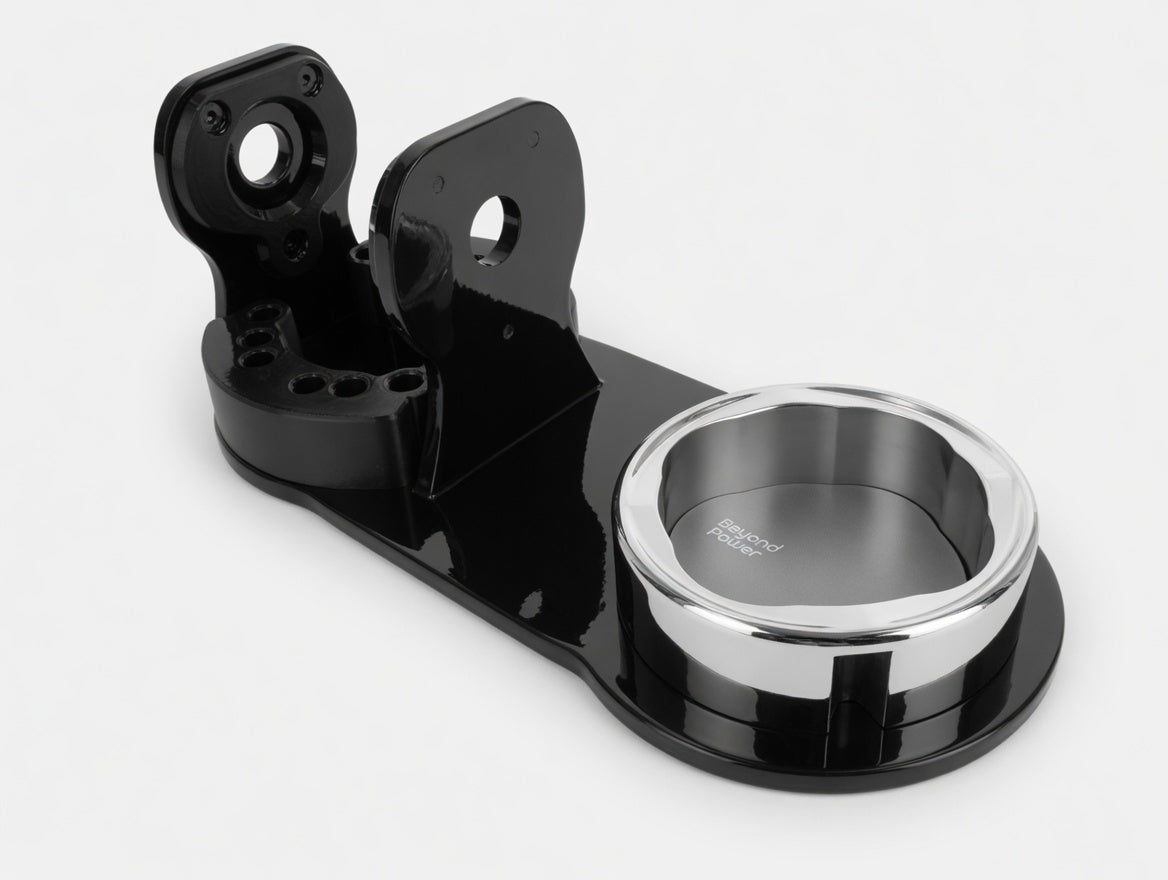

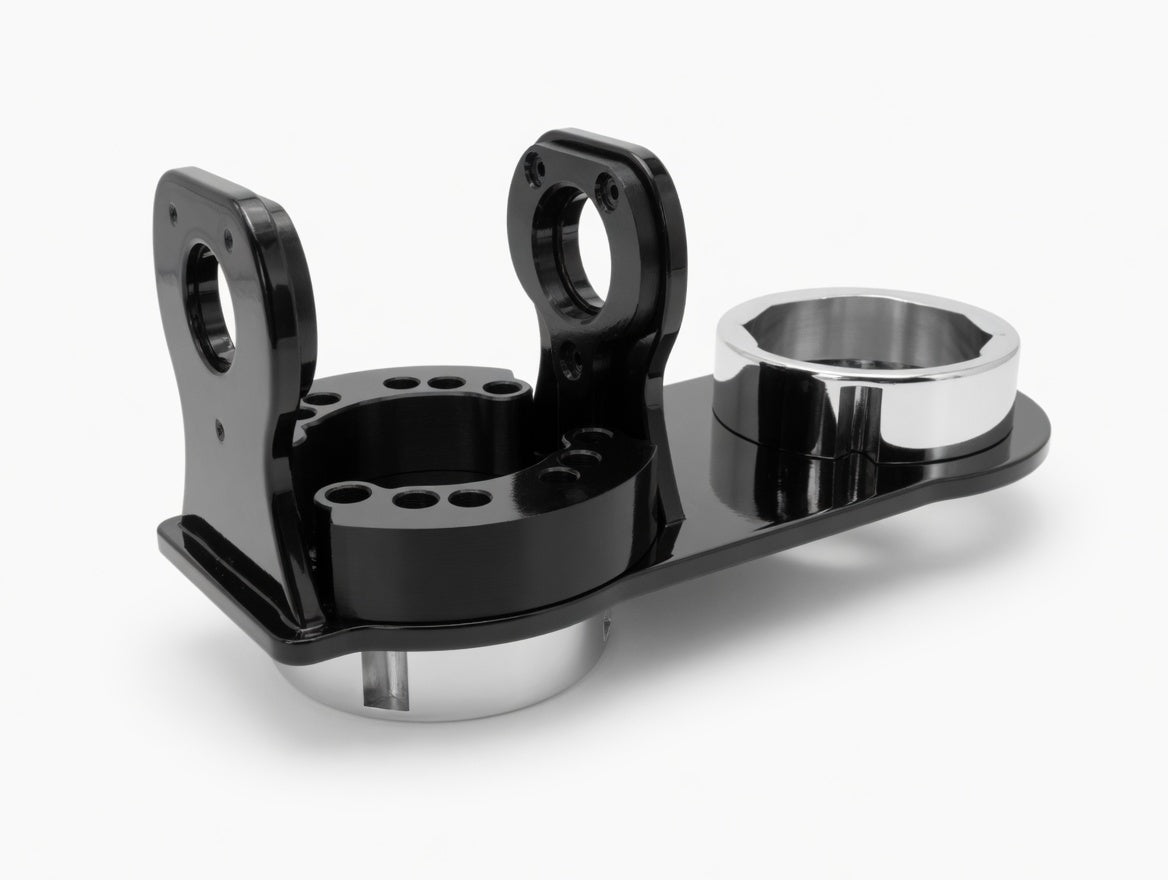

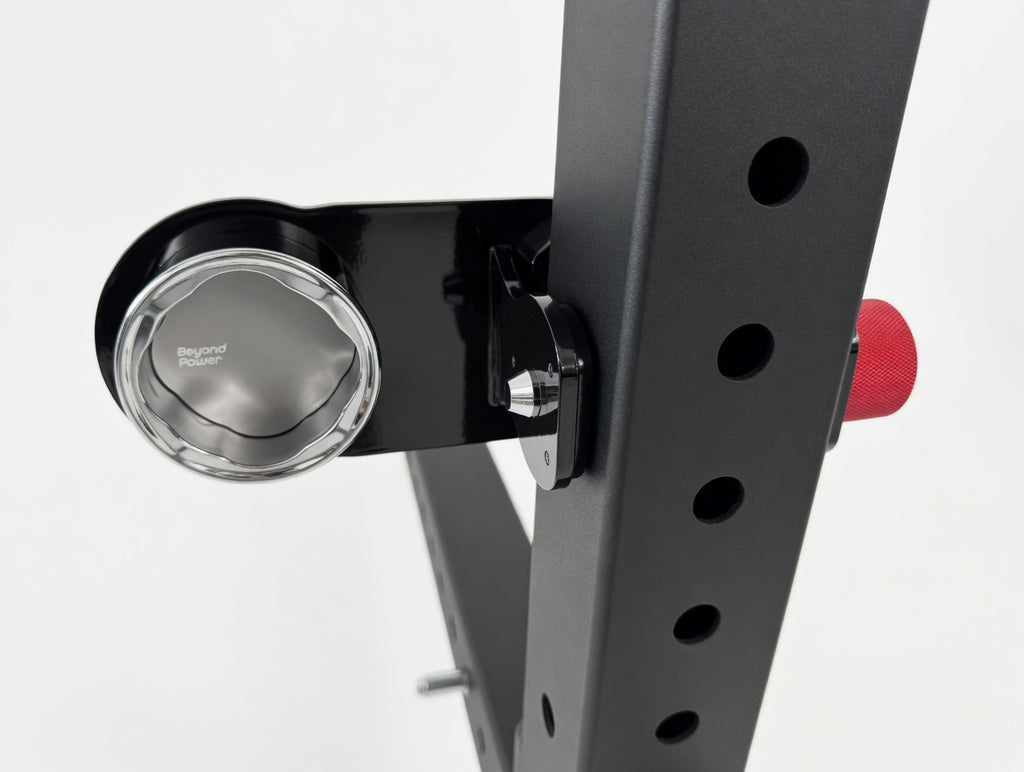

The Offset Drop Mount is a heavy-duty drop arm designed to offset and lower your VOLTRA I attaching point to the side of your crossmember or upright on 3x3 power racks. This offset drop design delivers greater range of motion and deeper muscle engagement for more effective stretches and stronger contractions on every rep.
Key Features & Specifications:
- Lowers the VOLTRA I to the bottom of the crossmember or upright for improved pulling angles and range of motion.
- Attaches quickly and securely with a single push pin.
- Designed for 3x3 power racks.

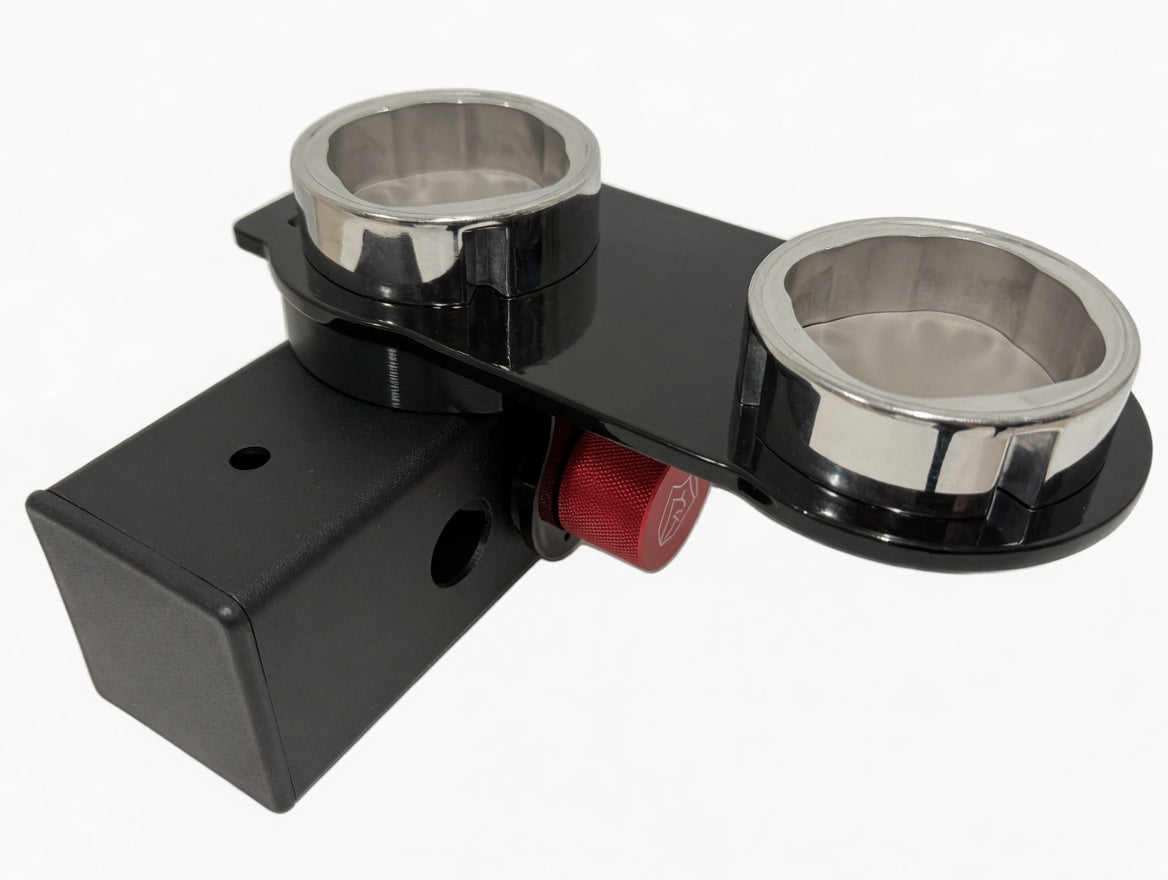

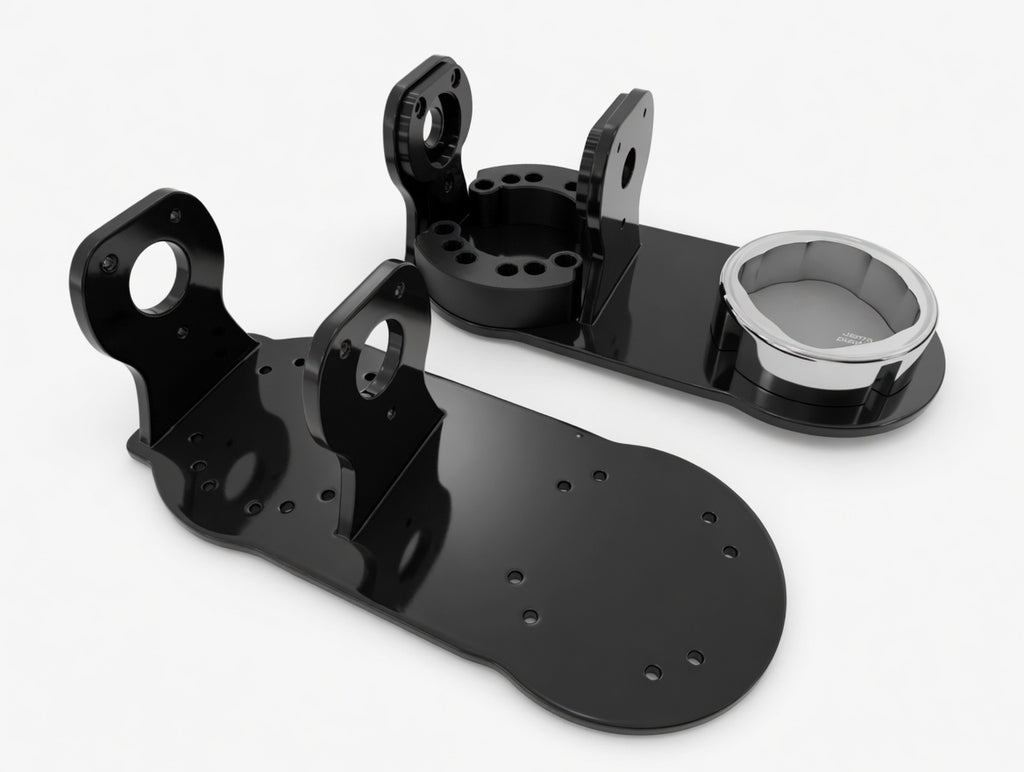

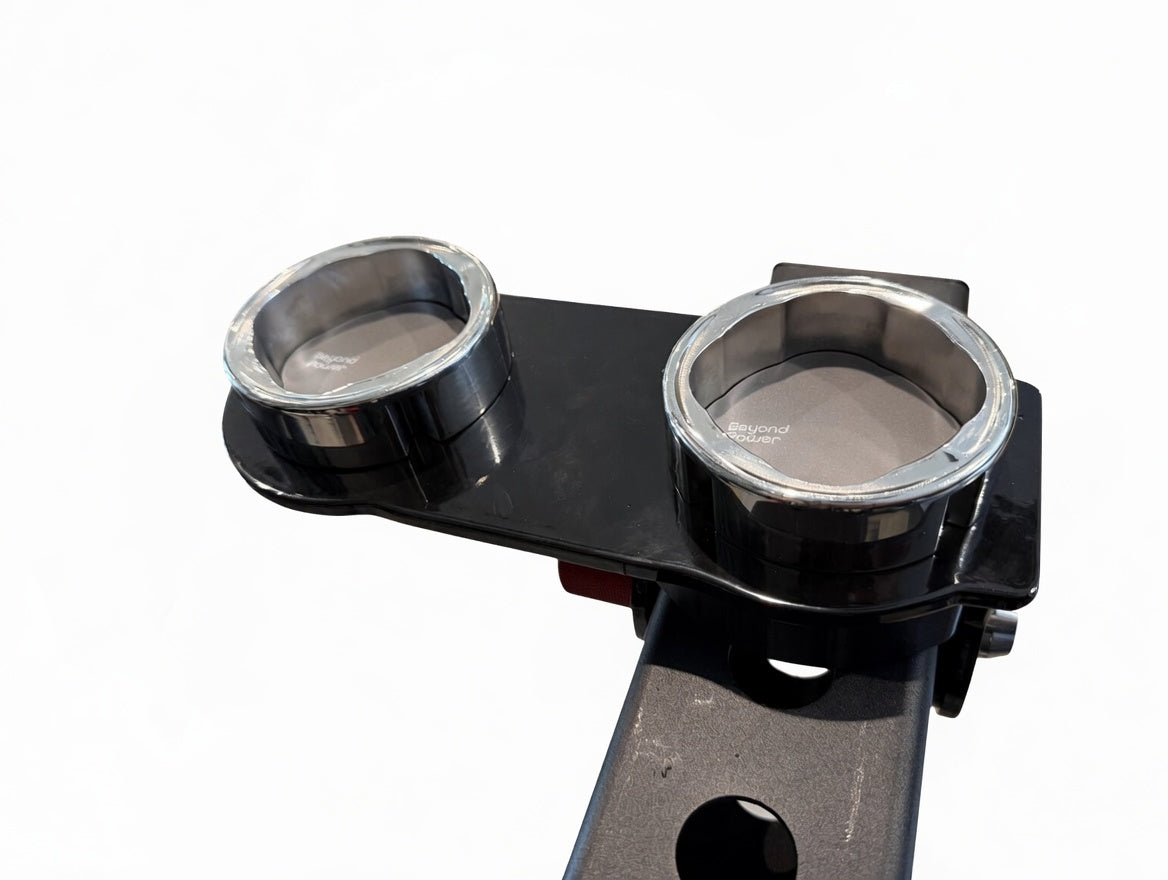

- Easily supports installation of two DIY Docks extending function of the mount.
- Ideal for use with VOLTRA units on power racks, squat racks, and rigs.
Fitment Note: Please measure your planned installation location carefully before purchasing. It is recommended you use a shorter length mag pin such as Titan Fitness or PRx which are no longer than 4.65". This is recommended since the VOLTRA I is offset with a minimal distance from the crossmember and a shorter mag pin doesn't impact the side of the VOLTRA I when locked in the DIY Dock. Mount may be bolted to rack also.
Important Usage Guidelines:
- Maximum Approved Load for the Mount Drop Arm is equal to the maximum resistance weight of the Beyond Power VOLTRA I unit.
- Not approved for installation of Doubling Plate on the offset DIY Dock location.
Included with every mount:
- Chafe pad shims for a tighter fit and reduced movement
- Allen wrench for adjustments
Product Contents: This listing is for the Offset Drop Mount only. Push pins and DIY Docks are not included unless ordered as a option during checkout. VOLTRA units, doubler plates, and other accessories are sold separately.
Built tough in the USA for serious lifters looking to optimize their VOLTRA I training setup.
Proudly made in the USA.
Specifications
| Length | 9.0625 in |
|---|---|
| Height | 3.5 in |
| Width | 4.1875 in |
| Weight | 4.0625 lb |
| Weight with DIY Dock | 4.5563 lb |
| Drop | 1.0 in |
| Offset | 2.75 in |
| Rack fit | 3x3 with 5/8" or 1" push pin (not included) |
| Material | A36 steel, gloss black powder coat |
| Material thickness | 0.313 in |
| Included hardware | 6 × M4-0.7 × 10 mm flat-head socket cap screw 4 × M4-0.7 × 12 mm flat-head socket cap screw |
| Notes | Weight 4 lb 1 oz without dock; 4 lb 8.9 oz with DIY Dock (shown as 4.0625 lb / 4.5563 lb). Length 9 1/16 in; width 4 3/16 in; height 3 1/2 in. Drop is from center of pin to bottom of the mount arm (1 in). Pin hole center is 2 1/2 in from the backside of the plate and 1 in from the bottom of the mount arm. Offset is from the face of the mount arm (with the hole) to the center of the DIY dock (2 3/4 in). Clearance from the face of the mounting arm (where the pin hole runs through) to the side of the VOLTRA I when mounted is 11/16 in. Base plate 0.313 in A36; arms (pin passes through) 0.250 in steel. Gloss black powder coat. M10 × 1.5 threaded hole for a lifting eye or as a doubling attachment point. No carabiner hole. |
