"Compact" Upright Mount - Bolt On
1" Holes / 2" on center / Mount only
$60.00
Sale price
$60.00
Regular price
Skip to product information
"Compact" Upright Mount - Bolt On
$60.00
Sale price
$60.00
Regular price
Shipping calculated at checkout.
"Compact" Upright Mount for Beyond Power VOLTRA I – All 3x3 Racks | Bolt-On Attachment available in either 5/8" or 1" mounting holes. Comes with 1mm chafe pad which is installed between mount and rack to prevent marring of racks.
Spacing between bolt holes on rack is 2” and two bolts are required to install properly.
Can be mounted with DIY Dock facing upward or downward depending upon your specific needs.
Note: DIY Dock and bolts not included.
Proudly made in the USA.
Specifications
| Width | 4.125 in |
|---|---|
| Rack fit | Bolt-on; 1" or 5/8" holes; 2" or 4" hole spacing (to upright/crossmember) |
| Material | A36 steel, gloss black powder coat |
| Material thickness | 0.25 in |
| Included hardware | None provided — customer supplies mounting hardware |

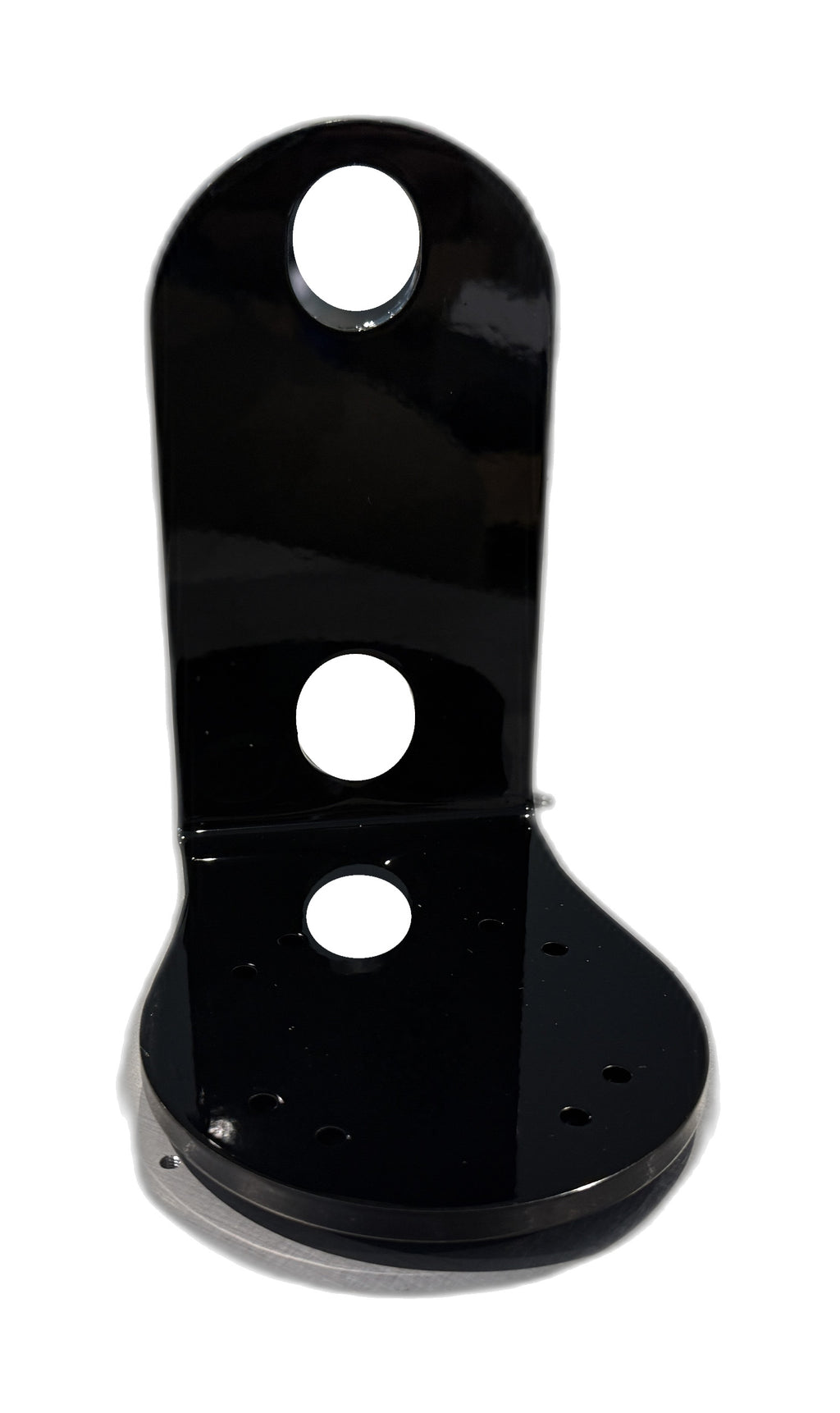

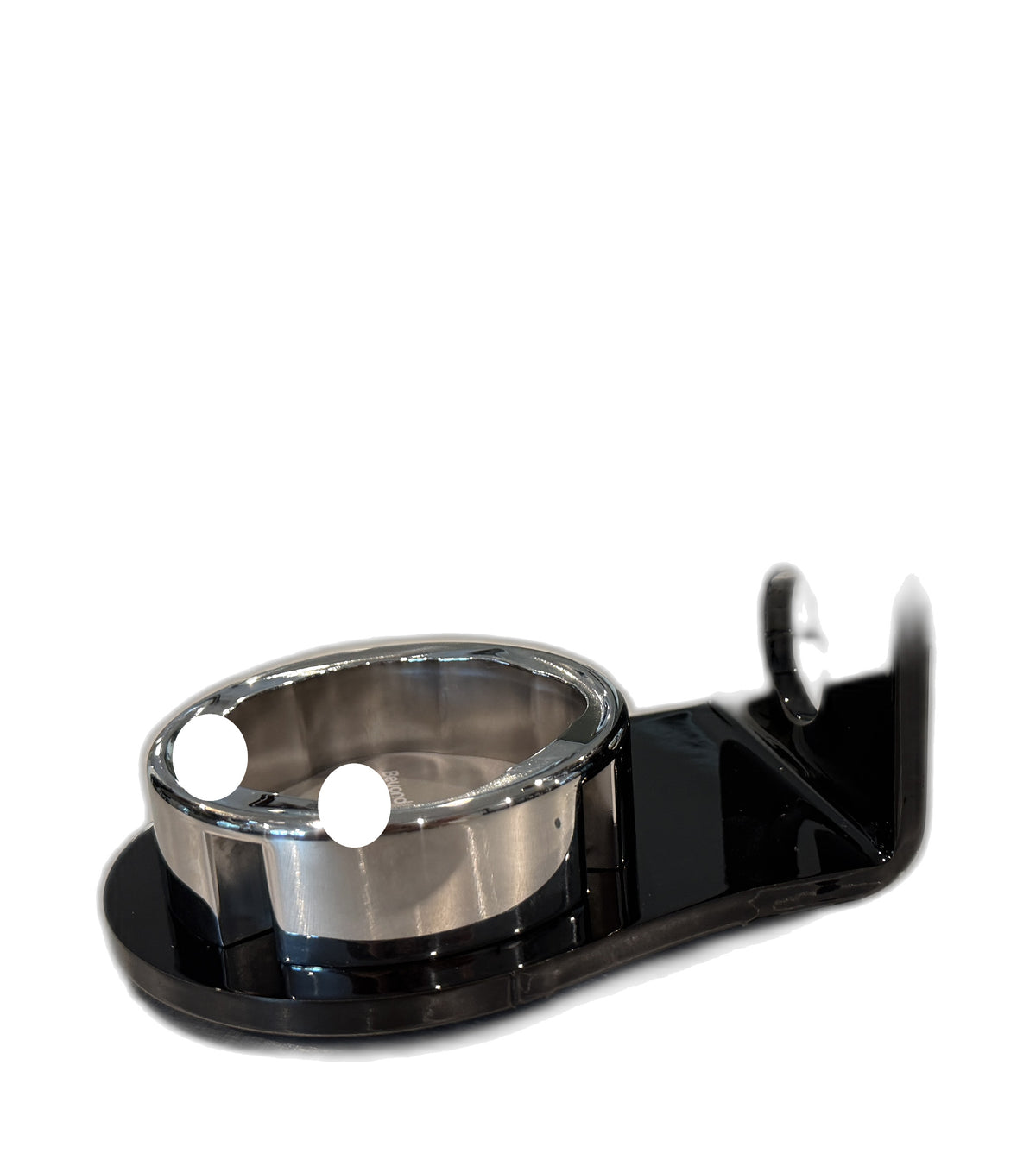

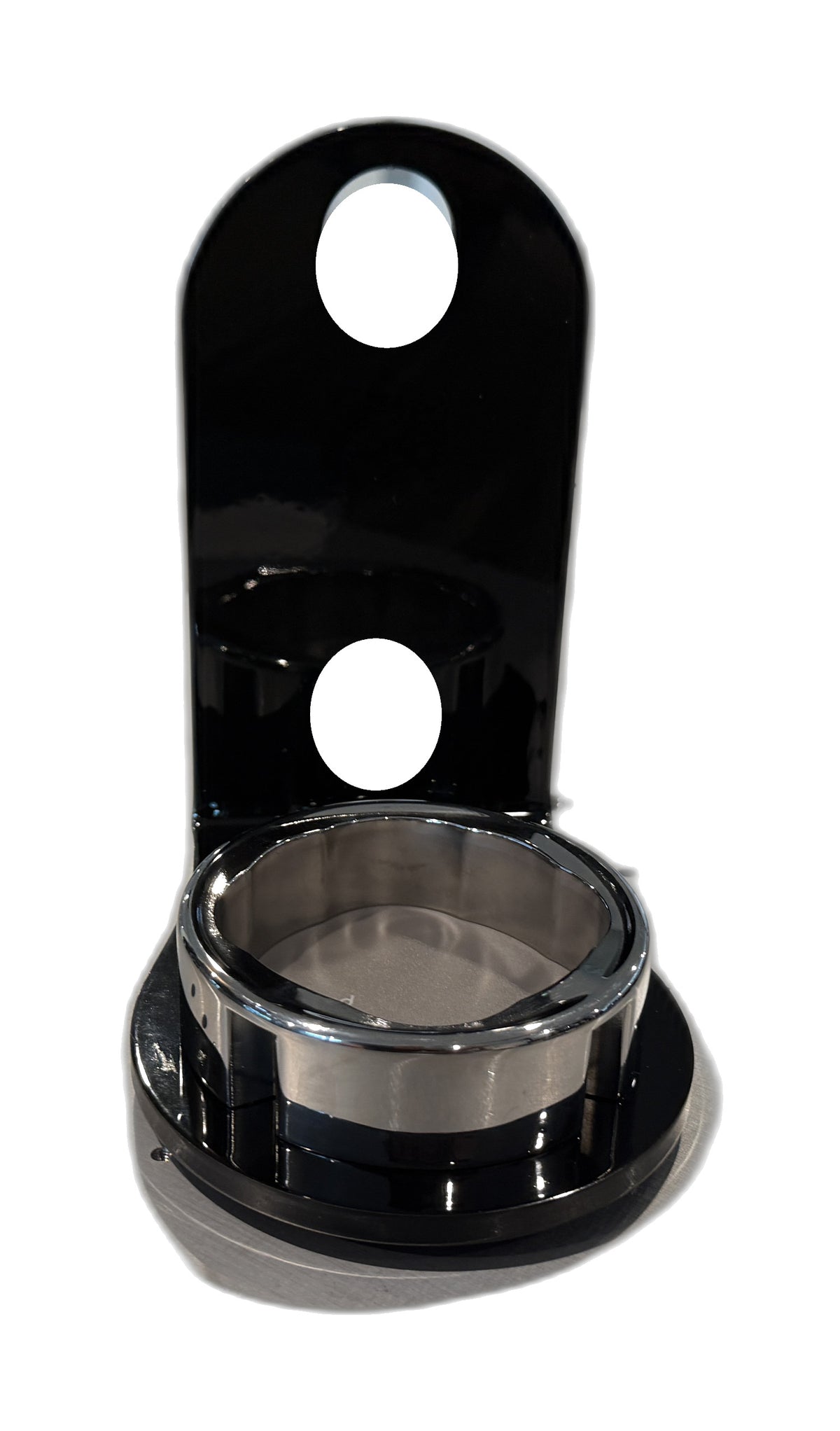

| Notes | Two hole-spacing versions (mounts to upright/crossmember). Specs differ by hole spacing. 2" ON CENTER: Height 4 3/16 in; width 4 1/8 in; depth 5 in. Two mounting holes, 2 in on center. Center of bottom hole is 1 1/2 in from the bottom of the mount. Weight 1.6875 lb (1 lb 11 oz) without dock; 2.1875 lb (2 lb 3.0 oz) with DIY Dock. Offset is from the side of the mount to the center of the DIY dock (2 7/8 in). Clearance from the face of the mount to the side of the VOLTRA I when installed is 0.75 in (3/4 in). 4" ON CENTER: Height 6 1/4 in; width 4 1/8 in at widest point; depth 5 1/2 in. Two mounting holes, 4 in on center. Center of bottom hole is 1 3/8 in from the bottom of the plate. Weight 2.35 lb (2 lb 5.6 oz) without dock; 2.8438 lb (2 lb 13.5 oz) with DIY Dock. Offset is from the face of the mount to the center of the DIY dock (1 3/16 in). Clearance from the side of the mount to the side of the VOLTRA I when installed is 1 3/16 in. SHARED: A36 steel, 0.250 in thick, gloss black powder coat. Bolt-on; 1" or 5/8" holes. No M10 threaded hole; no carabiner hole. |
