The Uprights are bolt-on Mounts for the VOLTRA I that attach to a rack upright or crossmember. Pick the Compact for 2" or 4" hole spacing, the Tall Upright for an offset with more DIY Dock positions, or the Simple or Oval flat plates for 6" spacing on any rack or surface.
| Compact Upright 2" | Compact Upright 4" | Tall Upright | Simple Upright | Oval | |
|---|---|---|---|---|---|
| Best for | Racks with 2" hole spacing | Racks with 4" hole spacing | A 3 1/2" offset with up to two DIY Docks at once | A flat plate on any rack or surface with 6" spacing | A flat oval plate on any rack or surface with 6" spacing |
| Options | Hole Size: 1" Holes, 5/8" Holes Hole spacing: 2" on center DIY Dock: Mount only, With DIY Dock |
Hole Size: 1" Holes, 5/8" Holes Hole spacing: 4" on center DIY Dock: Mount only, With DIY Dock |
Hole Size: 1" Hole, 5/8" Hole DIY Dock: Mount only, With DIY Dock |
Hole Size: 1" Holes, 5/8" Holes DIY Dock: Mount only, With DIY Dock |
Hole Size: 1” Hole, 5/8" Hole DIY Dock: Mount only, With DIY Dock |
| Price | $60; with DIY Dock $99 | $74; with DIY Dock $113 | $55; with DIY Dock $90 | $55; with DIY Dock $90 | $55; with DIY Dock $90 |
| Mounting holes | 1" or 5/8"; two holes, 2" on center | 1" or 5/8"; two holes, 4" on center | 1" or 5/8"; two holes, 6" center to center | 1" or 5/8"; two holes, 6" center to center | 1" or 5/8"; two holes, 6" center to center |
| Dimensions | 4 3/16" H × 4 1/8" W × 5" D | 6 1/4" H × 4 1/8" W × 5 1/2" D | 8" H × 4 1/8" W × 5 7/8" D | 7 3/4" × 3 7/16", 1/4" thick (1 1/4" with DIY Dock) | 4 1/4" × 7 11/16", 1/4" thick (1 1/4" with DIY Dock) |
| Offset / clearance | 2 7/8" offset, 3/4" clearance | 1 3/16" offset, 1 3/16" clearance | 3 1/2" offset; 1 1/2" clearance with Dock on the bottom | None (Dock mounts flat on the face) | None (Dock mounts flat on the face) |
| 2:1 doubling | No (no M10 hole) | No (no M10 hole) | No (no M10 hole) | Yes, with a doubling plate (sold separately) | Yes, with a doubling plate (sold separately) |
| Weight | 1 lb 11 oz (2 lb 3 oz with DIY Dock) | 2 lb 5.6 oz (2 lb 13.5 oz with DIY Dock) | 2 lb 10.1 oz; 3 lb 1.9 oz with DIY Dock | 1 lb 7.4 oz (1") / 1 lb 8.9 oz (5/8"); about 2 lb with DIY Dock | 1 lb 12.4 oz; 2 lb 4.4 oz with DIY Dock |

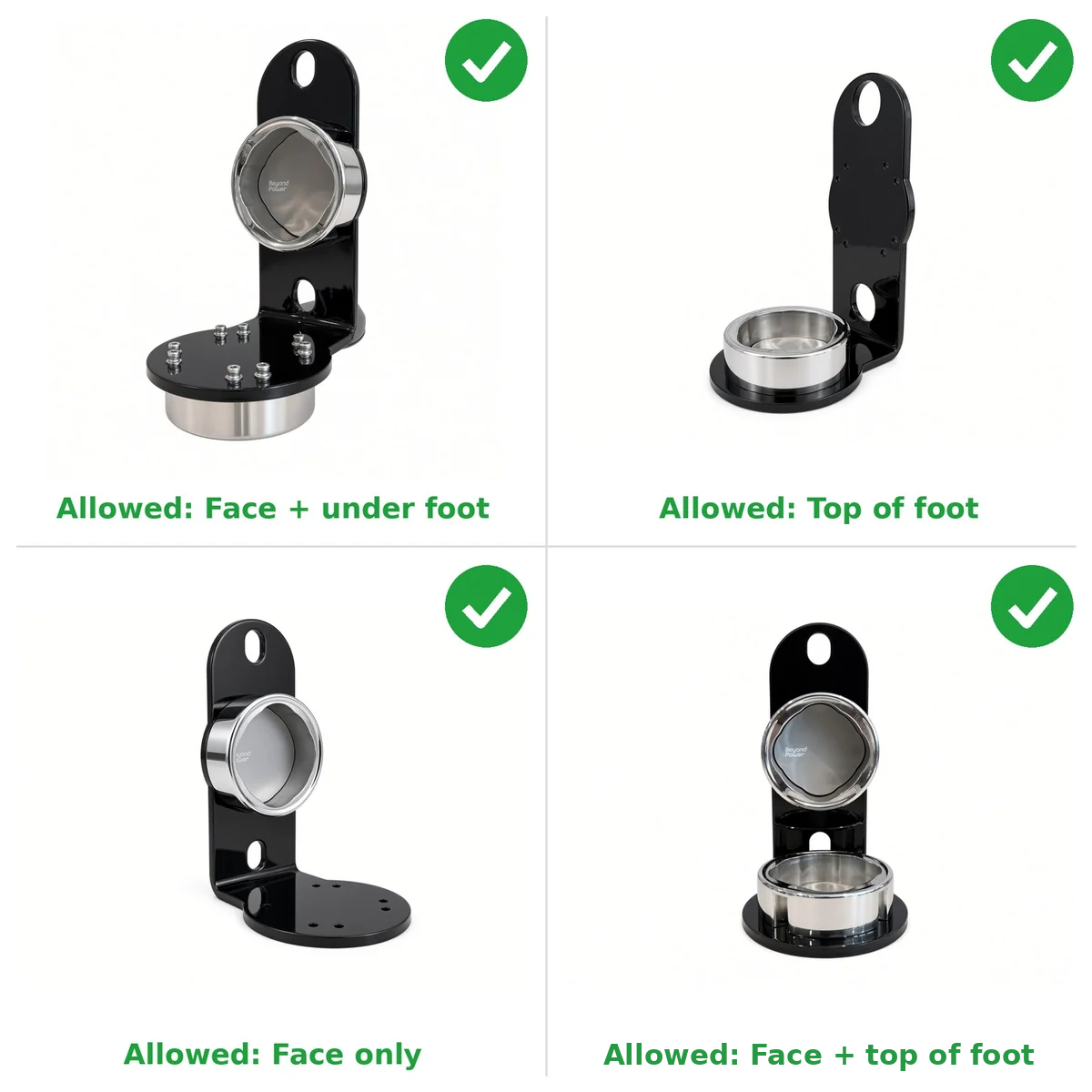

| DIY Dock positions | Dock facing up or down | Dock facing up or down | Three positions, two at once: face of the plate plus top or underside of the foot; rotates 180° | 1 | Usable in either direction |
| Chafe pad | Included | Included | Included | Included | Included |
| Rack bolts | Use bolts at least 1/2" longer than your existing hardware | Use bolts at least 1/2" longer than your existing hardware | Use bolts at least 1/2" longer than your existing hardware | Use bolts at least 1/2" longer than your existing hardware | Use bolts at least 1/2" longer than your existing hardware |
| Max bolt head stack | Under 1/2" bolt head height | Under 1/2" bolt head height | Under 1/2" bolt head height | Under 1/2" bolt head height | Under 1/2" bolt head height |
| Material | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat |
Compact Upright 2"
From $60. 2" hole spacing.
Compact Upright 4"
From $74. 4" hole spacing.

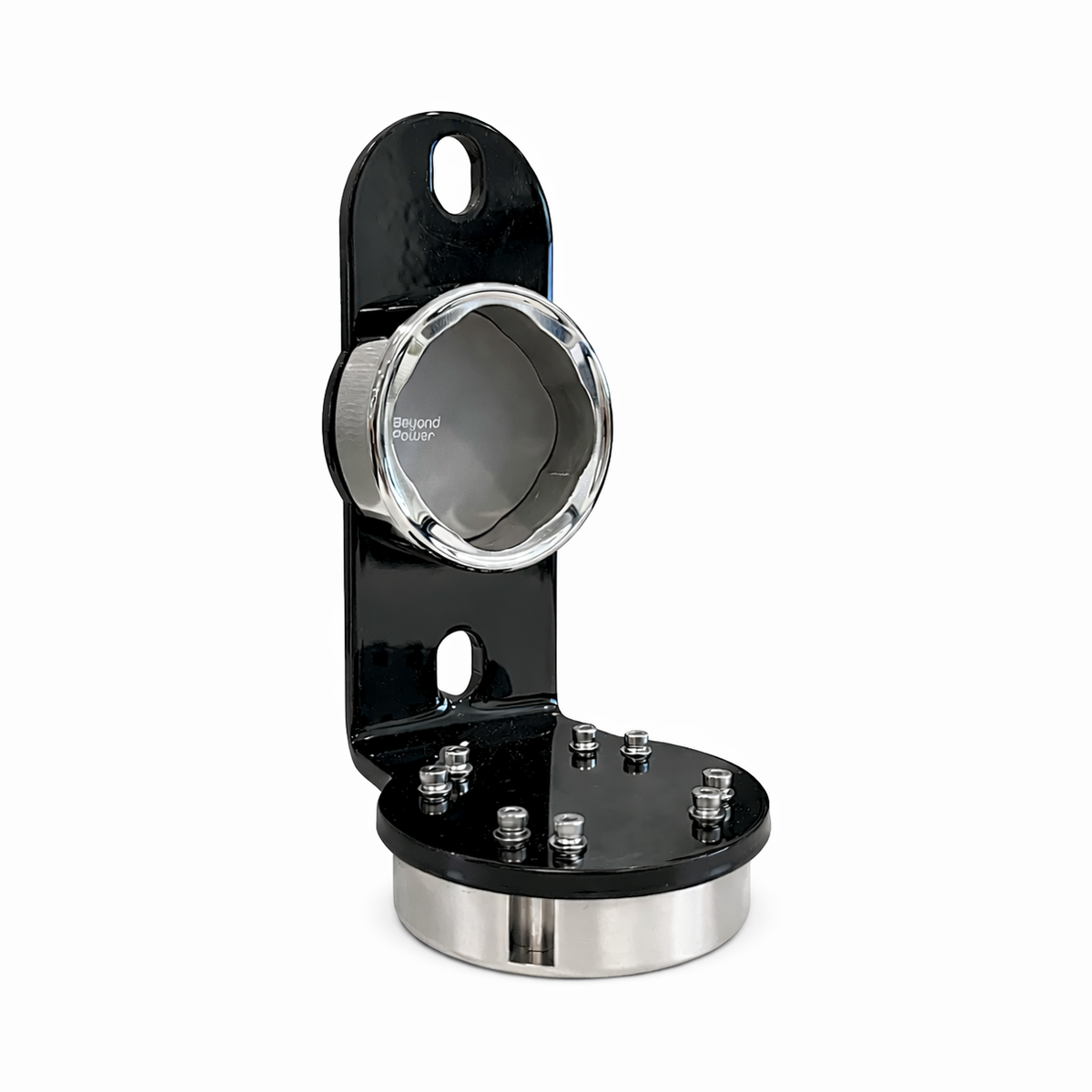

Tall Upright
From $55. 3 1/2" offset, flexible Dock positions.

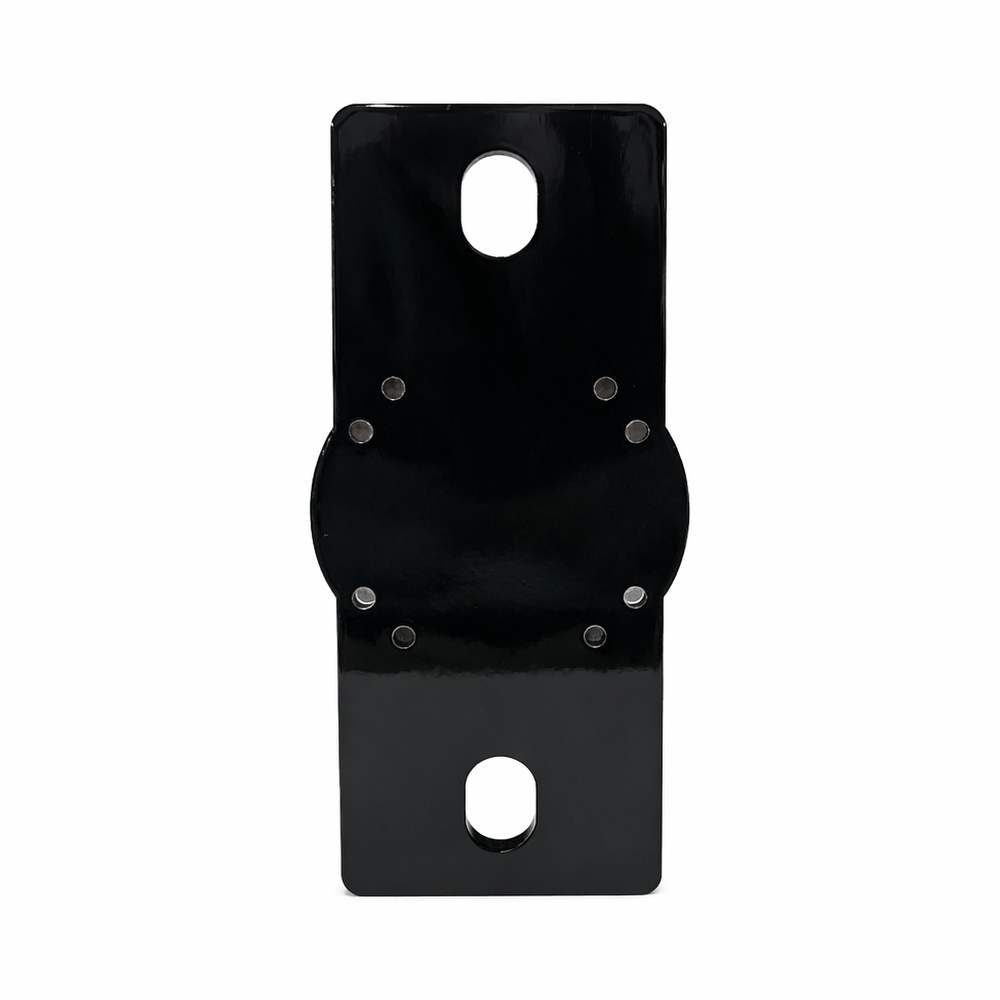

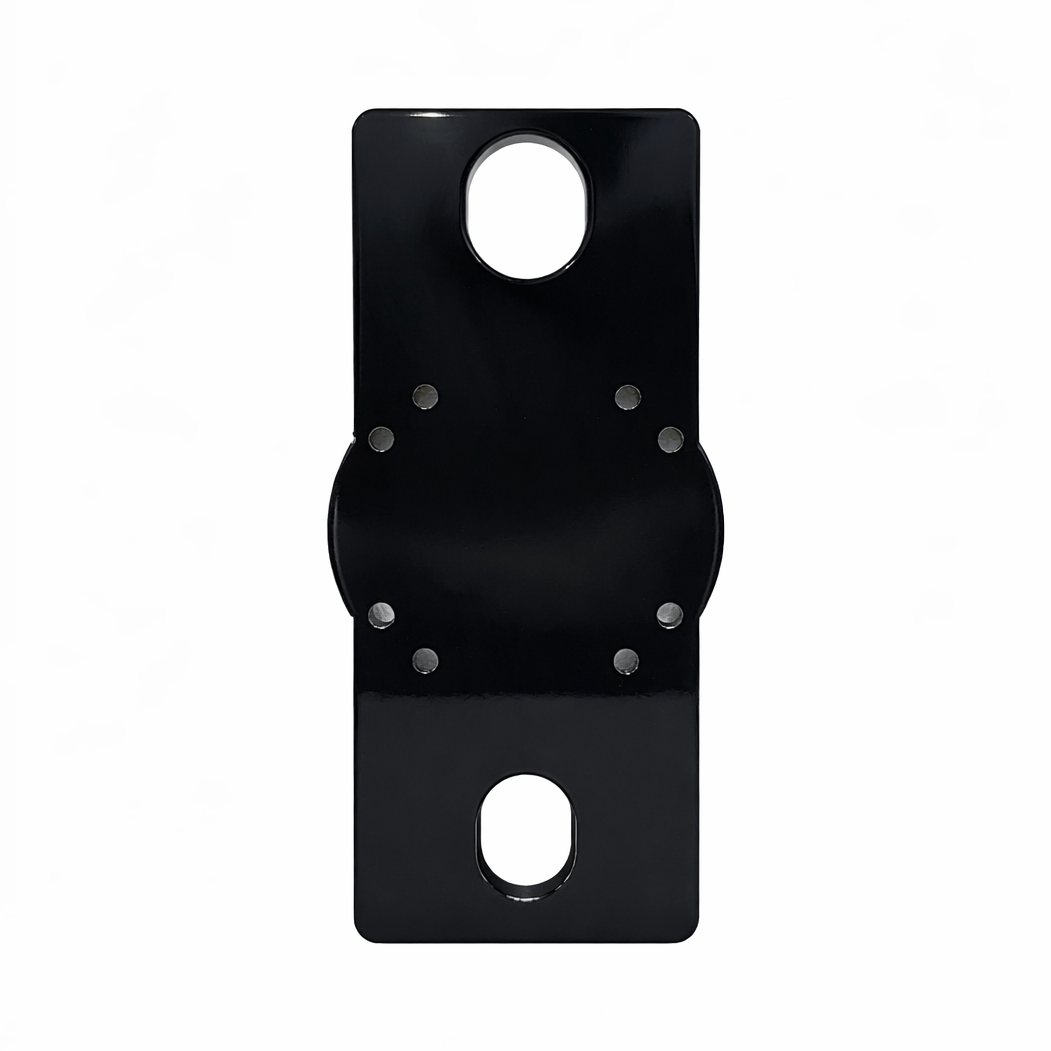

Simple Upright
From $55. Flat plate, 6" spacing.

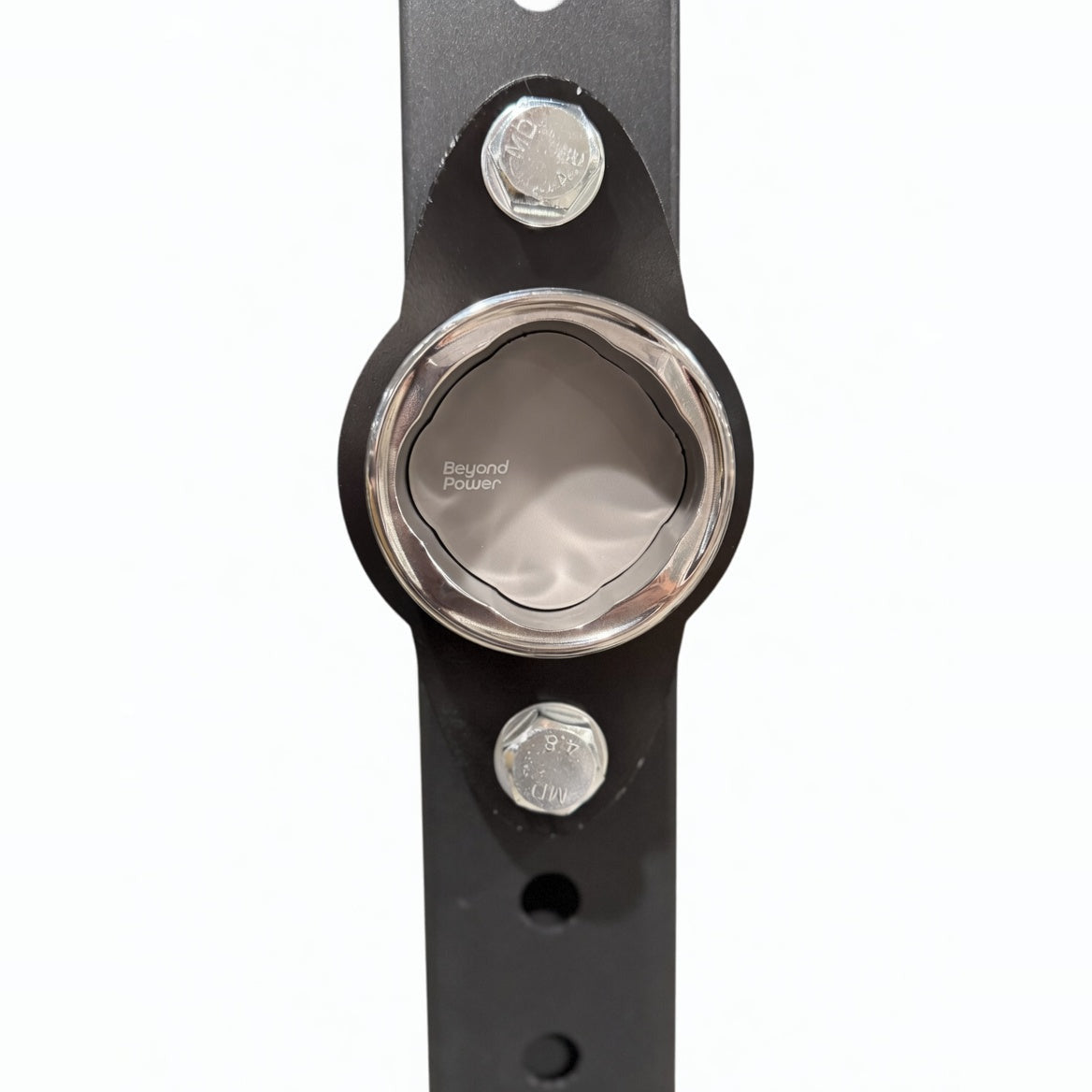

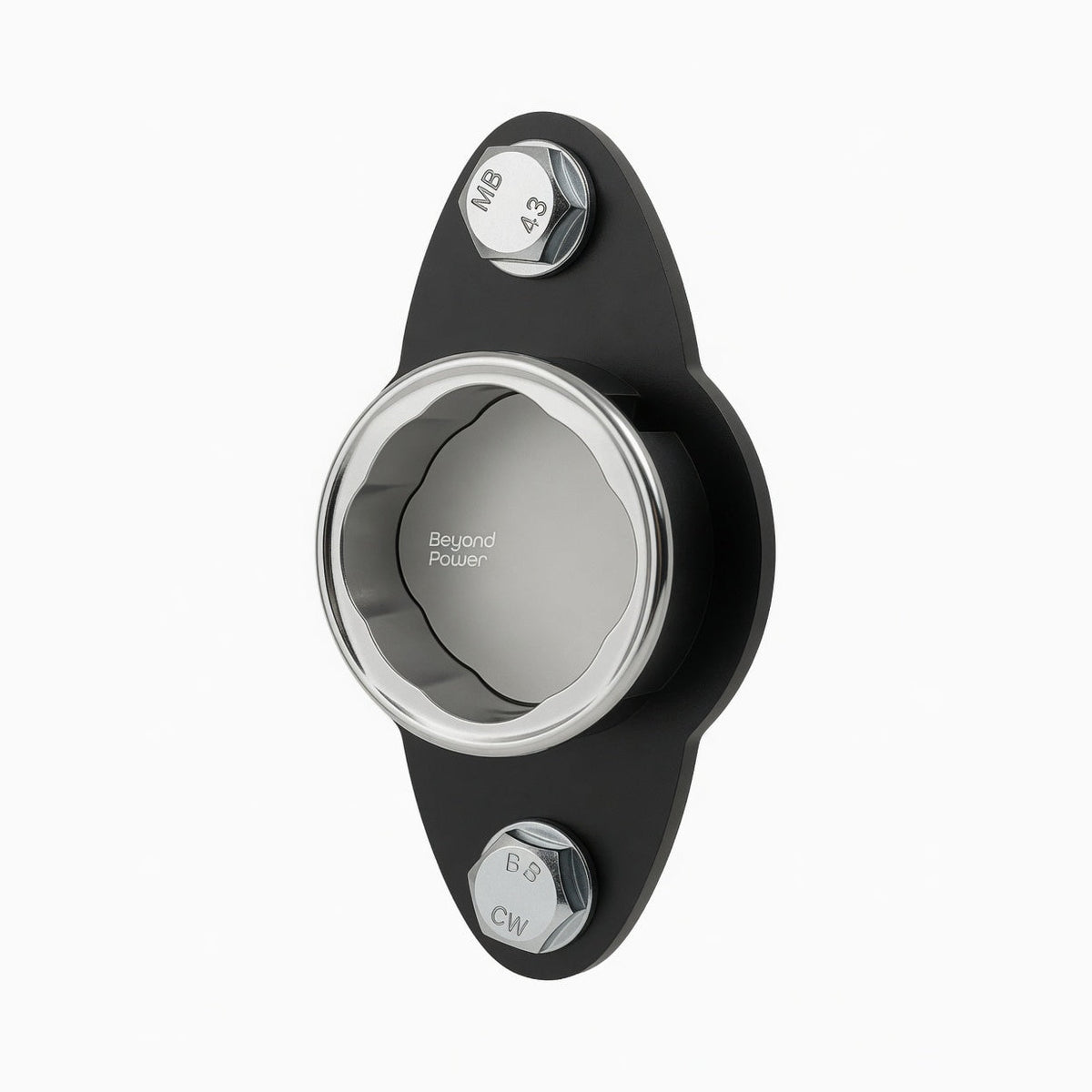

Oval
From $55. Flat oval plate, 6" spacing.
