Omni is a family of directional Mounts for the VOLTRA I on 3x3 racks. Pick the Omni for upward, downward or straight-out pulls with 2:1 doubling on the straight-out pull, the Omni Doubler for 2:1 doubling on any pull direction, or an Omni Lite to turn the VOLTRA I 90° for an inline or cross position.
| Omni | Omni Doubler | Omni Lite Inline | Omni Lite Cross | |
|---|---|---|---|---|
| Best for | Upward, downward or straight-out cable pulls in one Mount | Omni pull directions with a 2:1 doubler on each end | Turning the VOLTRA I 90° for an inline position on the upright or crossmember | Turning the VOLTRA I 90° for a cross pull |
| Options | Hole Size: 1" Hole, 5/8" Hole DIY Dock: Mount only, With 2 DIY Docks |
Mounting Holes: Single Hole, Two Hole Hole Size: 1" Hole, 5/8" Hole DIY Dock: Mount only, With 2 DIY Docks |
Hole Size: 1" Hole, 5/8" Hole DIY Dock: Mount only, With DIY Dock |
Hole Size: 1" Hole, 5/8" Hole DIY Dock: Mount only, With DIY Dock |
| Price | $135; with 2 DIY Docks $195 | $150; with 2 DIY Docks $205 | $123; with DIY Dock $157 | $121; with DIY Dock $156 |
| Rack / upright fit | 3x3 with 5/8" or 1" push pin (not included) | 3x3 with 5/8" or 1" push pin (not included) | 3x3 with 5/8" or 1" push pin (not included) | 3x3 with 5/8" or 1" push pin (not included) |
| Pin type | Single pin | Single Hole or Two Hole | Single pin | Single pin |
| 2:1 doubling | Yes, on the straight-out pull (M10×1.5 threaded hole; separate carabiner hole) | Yes, a doubler on each end (two M10×1.5 threaded holes; two 3/4" carabiner holes) | No | No |
| Dimensions (L × W × H) | 5 3/4" × 4 1/2" × 9 1/8" | 7 1/4" × 4 7/16" × 9 15/16" | 4 5/8" × 4 5/16" × 7 3/4" | 5 1/4" × 4 1/2" × 7 5/8" |
| Offset | 3 3/4" (face of upright to DIY Dock center) | 3 3/4" (face of upright to DIY Dock center) | 2 1/2" (side plate to Dock center); 1/2" clearance to the VOLTRA I | 2 1/2" (side plate to Dock center); 1/2" clearance to the VOLTRA I |
| Inside width between legs | 3.437" | 3.437" | 3.437" | 3.437" |
| Weight | 4 lb 6.1 oz; 5 lb 5.8 oz with DIY Docks | 5 lb 3.8 oz; 6 lb 3.8 oz with 2 DIY Docks | 3 lb 4.4 oz; 3 lb 12.3 oz with DIY Dock | 3 lb 9.2 oz; 4 lb 1 oz with DIY Dock |
| Material | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat | 1/4" A36 steel, gloss black powder coat |
| Included | 6 × M4-0.7 × 10 mm and 4 × M4-0.7 × 12 mm flat-head socket cap screws; chafe pad shims; Allen wrench | 10 × M4-0.7 × 10 mm flat-head socket cap screws; chafe pad shims; Allen wrench | 10 × M4-0.7 × 10 mm flat-head socket cap screws; chafe pad shims; Allen wrench | 10 × M4-0.7 × 10 mm flat-head socket cap screws; chafe pad shims; Allen wrench |
Omni
From $135. Up, down or straight out, with 2:1 on the straight-out pull.

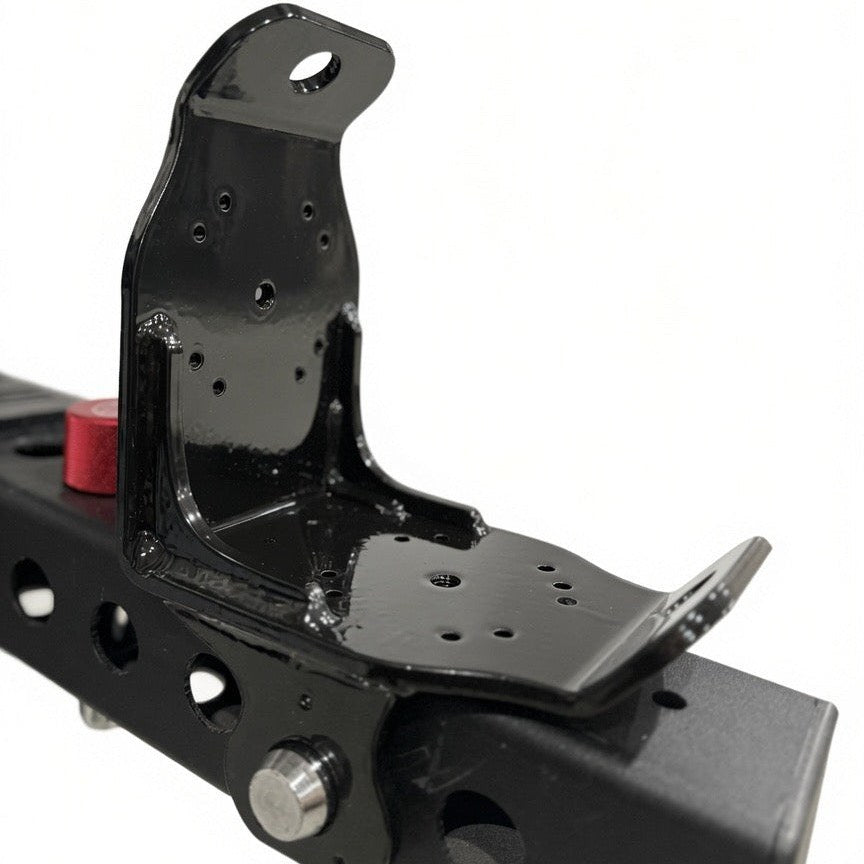

Omni Doubler
From $150. Omni directions with 2:1 on every pull.

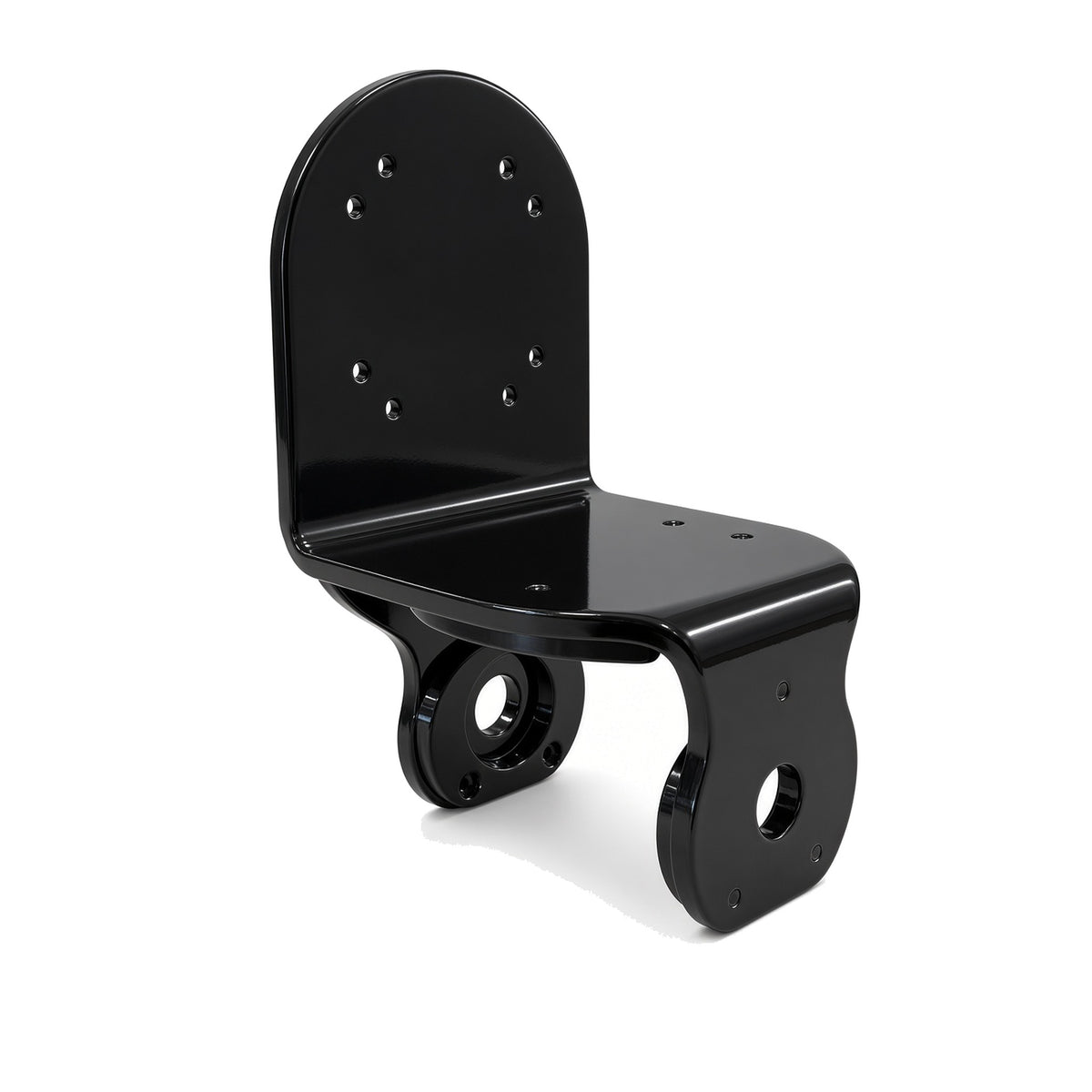

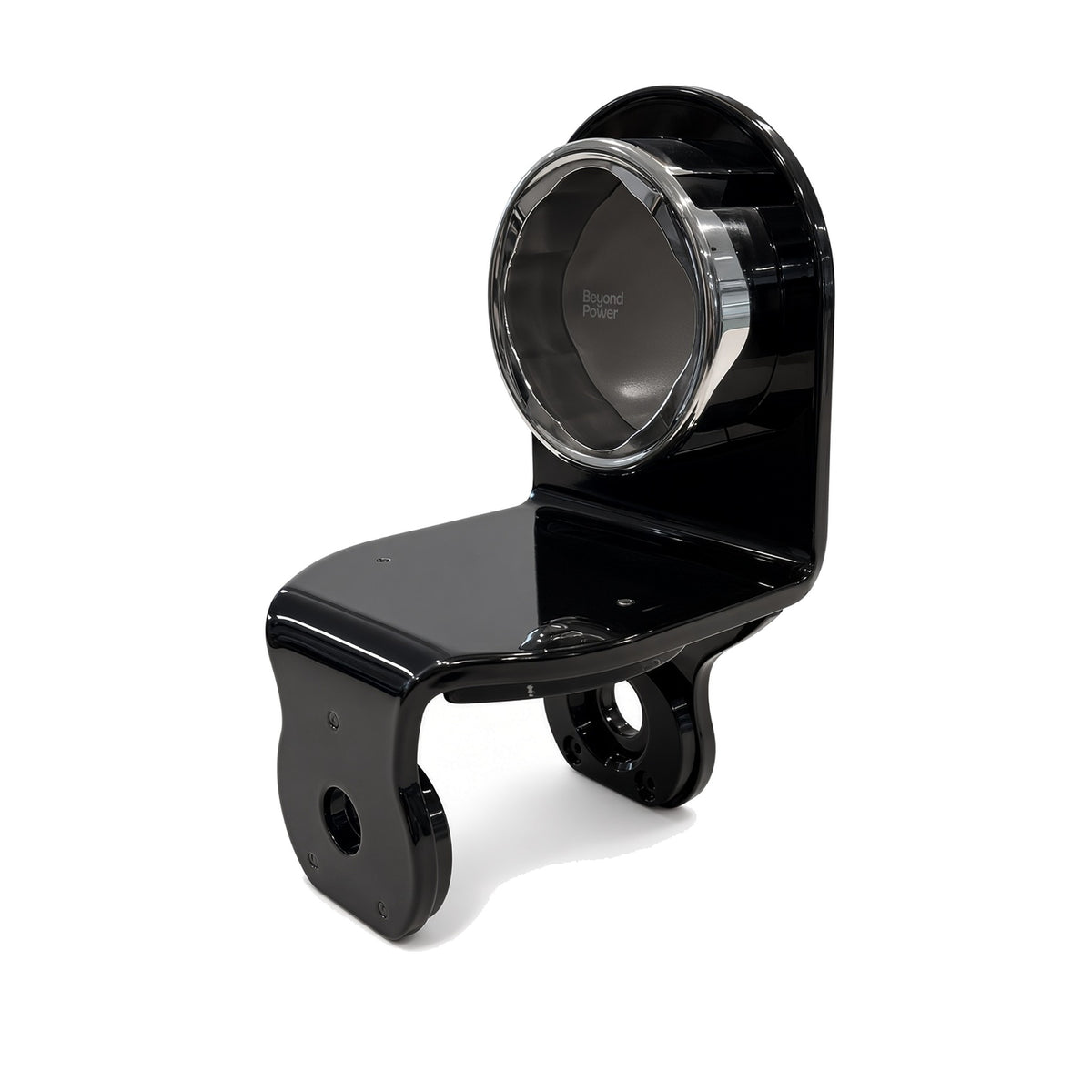

Omni Lite Inline
From $123. VOLTRA I turned 90° for an inline position.

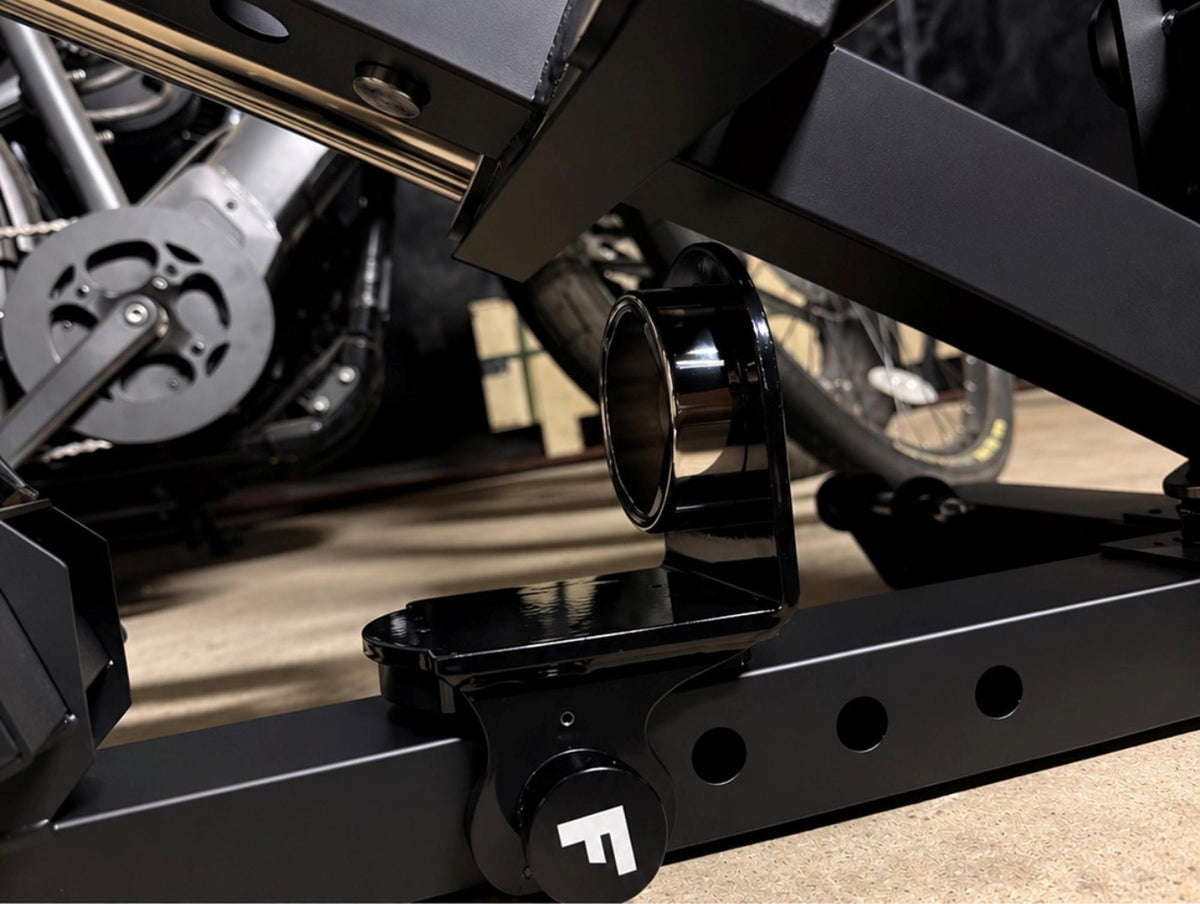

Omni Lite Cross
From $121. VOLTRA I turned 90° for a cross pull.
