Omni Lite Cross

Omni Lite Cross

1" Hole / Mount only
$121.00
$121.00
Skip to product information
Omni Lite Cross
  • Omni Lite Cross
  • Omni Lite Cross
  • Omni Lite Cross
  • Omni Lite Cross
Omni Lite Cross

Omni Lite Cross

$121.00
$121.00
Shipping calculated at checkout.
Hole Size
Choose: DIY Dock
Upright Size (Width × Depth)

How upright size works

Our mount designs stay the same. Fit for other upright sizes comes from sized chafe pads when you pick that option. Pick the size that matches your rack so the pads ship ready to fit.

For fine-tune on a standard 3×3, see shim kit installation.

Upright Size Width × Depth: top-down tubing cross-section. Depth is front-to-back of the tube, not rack height.
Width × Depth — top-down tubing cross-section; Depth is front-to-back of the tube (not rack height)

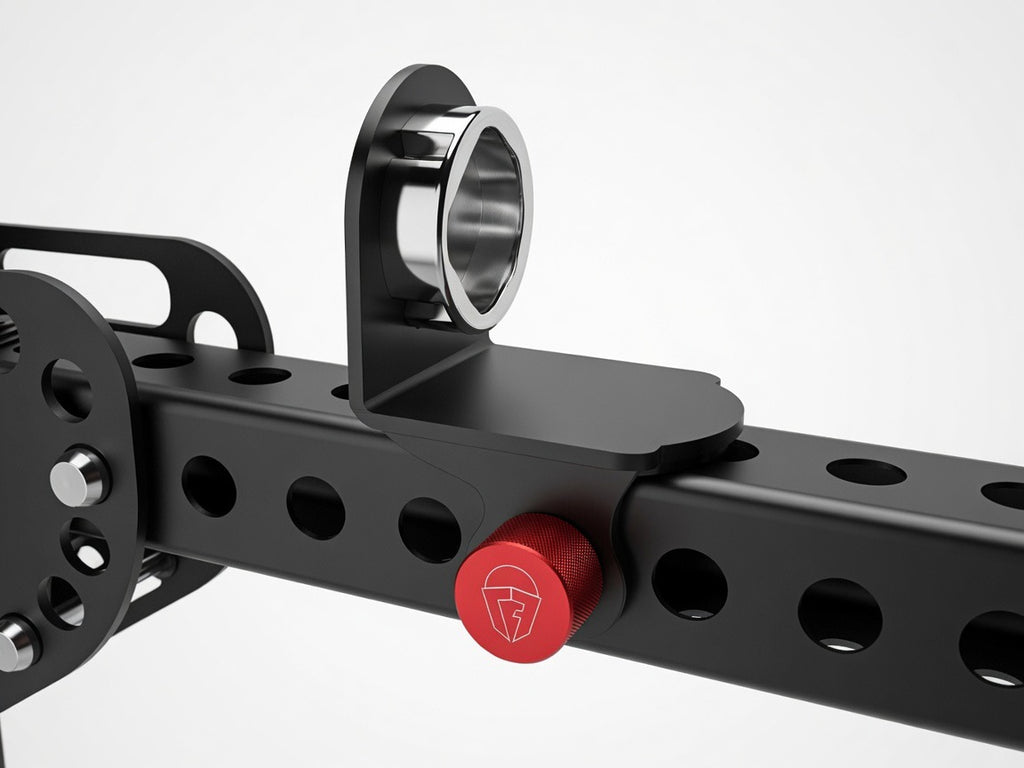

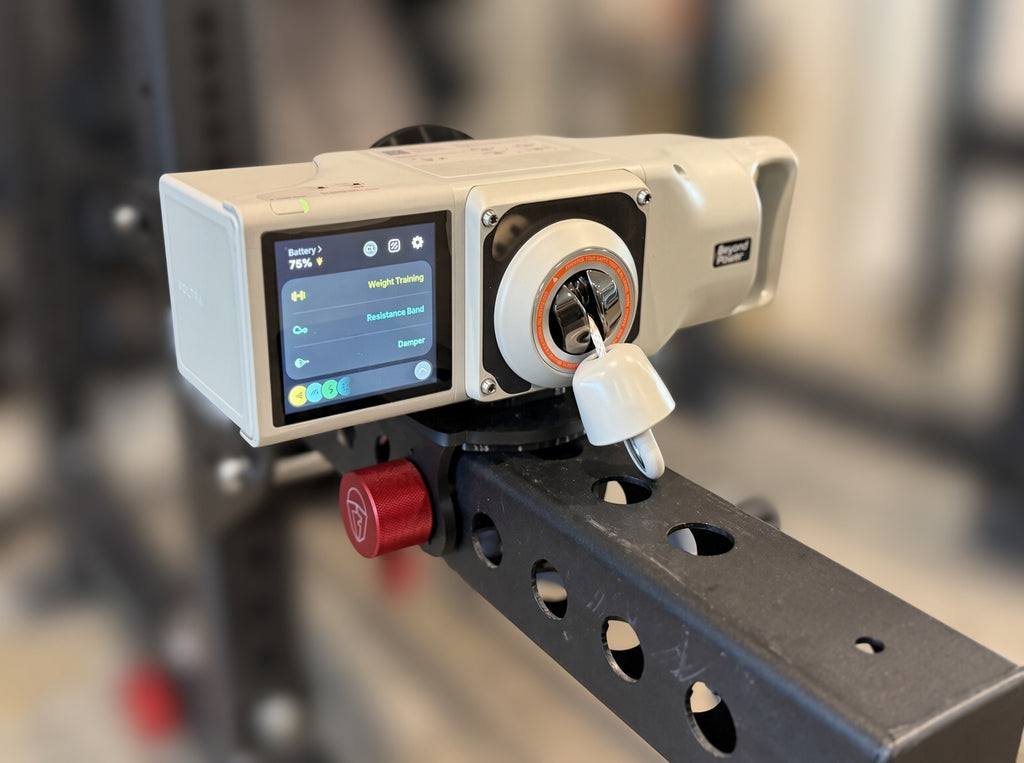

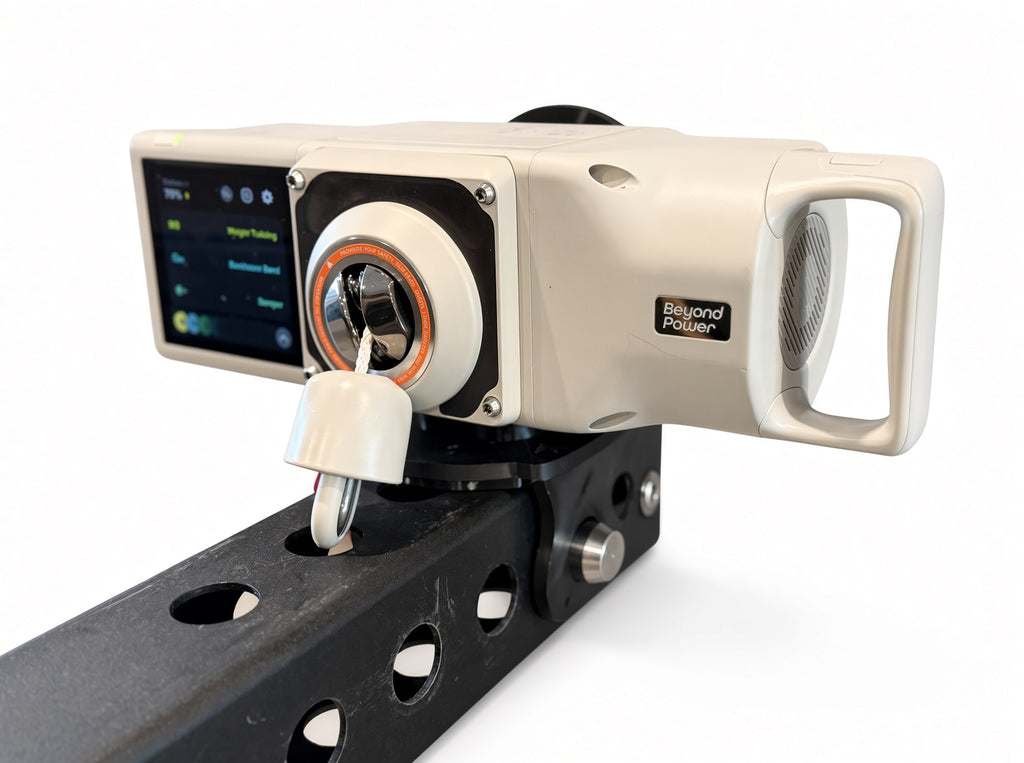

The Omni Lite - Cross gives you directional control over your cable pull — rotating the VOLTRA I to 90 degrees to achieve a unique inline position on the upright or crossmember — allowing for a cross pull.  No more fighting bad angles or limited movement paths on your 3x3 power rack.

Its compact, single pin design makes efficient use of space on 3x3 racks while delivering the same precise fit as all Voltra Mounts.

This secure single-pin mount provides a stable connection with quick and easy adjustments during your workout. It saves valuable rack space, reduces the need for extra equipment, and makes your entire VOLTRA I setup far easier to move and reconfigure between locations.

What’s Included:

  • Chafe pad shims for a tighter fit and reduced movement
  • Allen wrench for adjustments
  • When purchasing with DIY Docks, 1 Docks are Included

United States flag Proudly made in the USA for serious athletes who demand reliable fit and performance.

Note: The VOLTRA I, Push Pin and DIY Docks shown in product images are not included.
Specifications
Length5.25 in
Height7.625 in
Width4.5 in
Weight3.575 lb
Weight with DIY Dock4.0625 lb
Offset2.5 in
Inside width between legs3.437"
Rack fit3x3 with 5/8" or 1" push pin (not included)
MaterialA36 steel, gloss black powder coat
Material thickness0.25 in
Included hardware10 × M4-0.7 × 10 mm flat-head socket cap screw
NotesWeight 3 lb 9.2 oz without dock; 4 lb 1 oz with DIY Dock (shown as 3.575 lb / 4.0625 lb). Height 7 5/8 in; depth 5 1/4 in; width 4 1/2 in. Pin hole center is 6 5/8 in from the top of the plate and 1 in from the bottom. Offset is from the side plate to the center of the DIY dock (2 1/2 in). Clearance from the mount to the side of the VOLTRA I when installed is 1/2 in. A36 steel, 0.250 in thick, gloss black powder coat. No M10 doubling / lifting hole; no threaded doubling holes; no carabiner hole. Inside width between legs 3.437 in.
