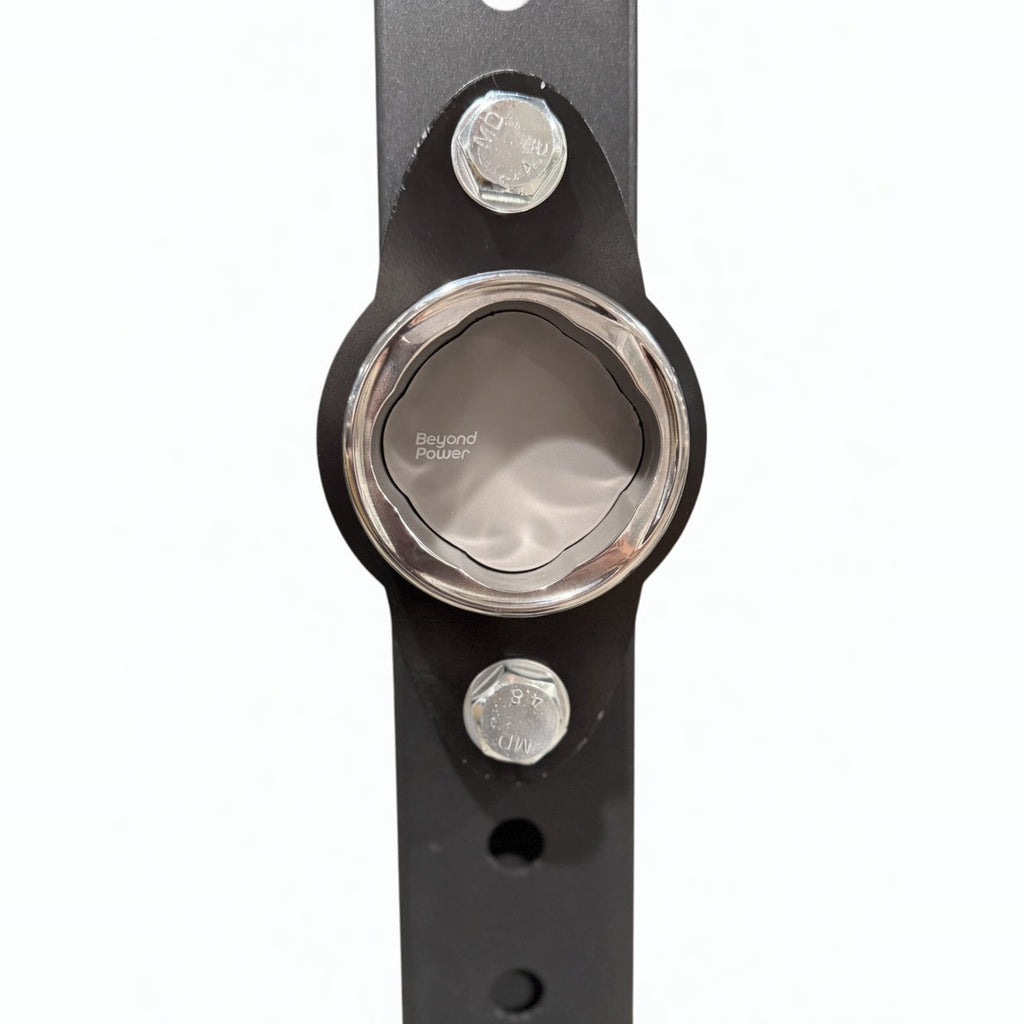

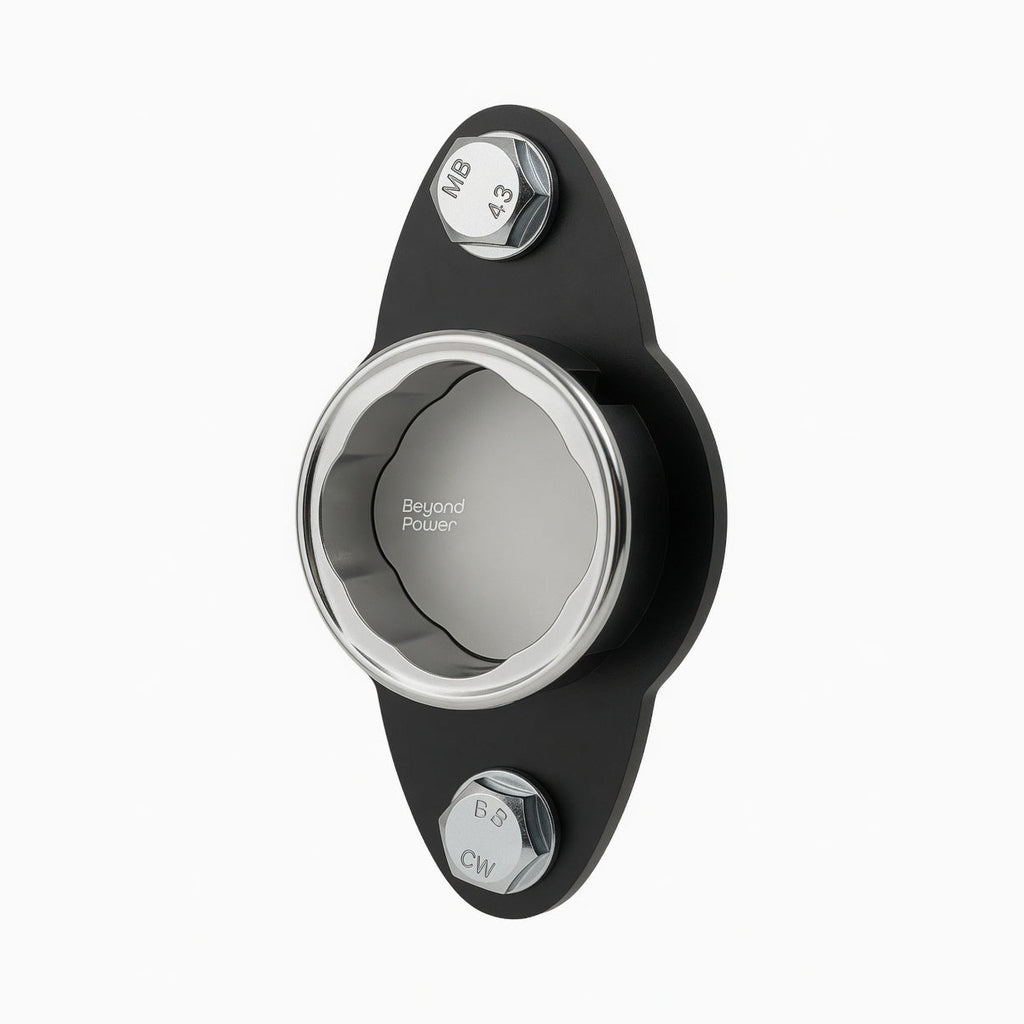

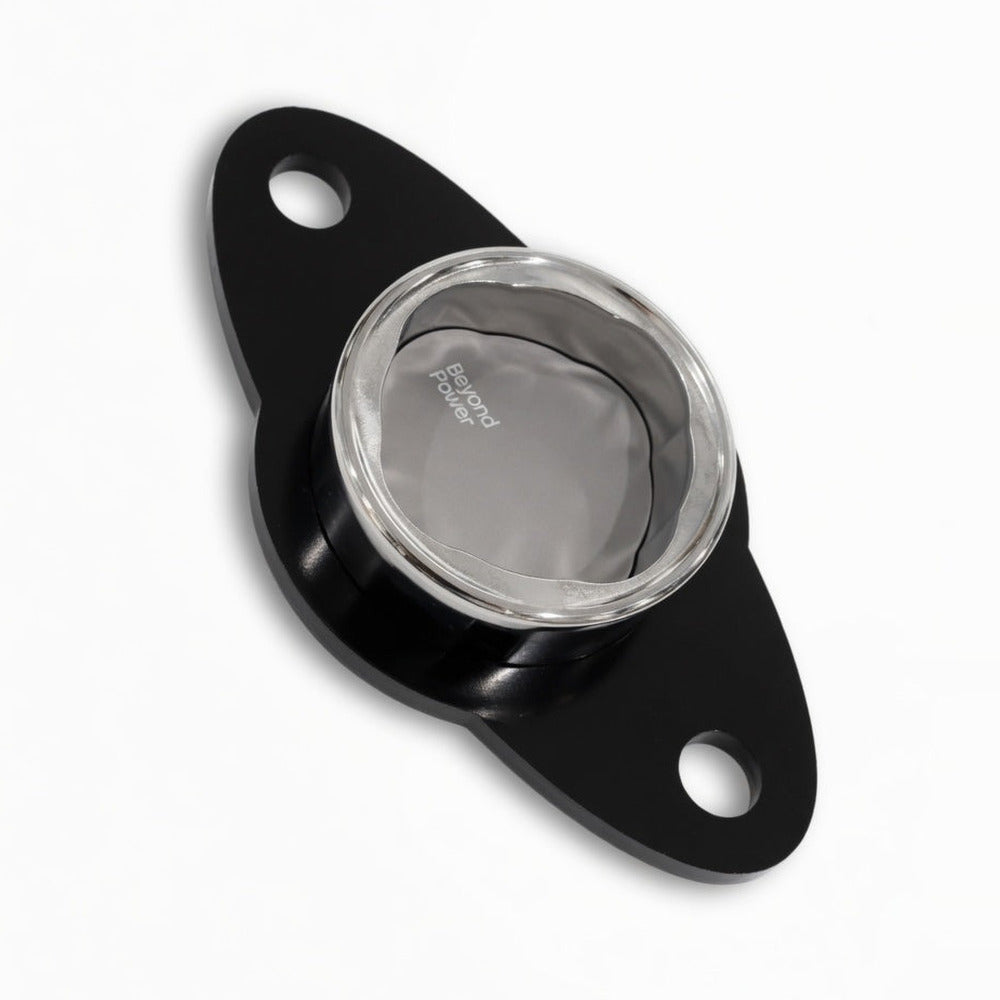

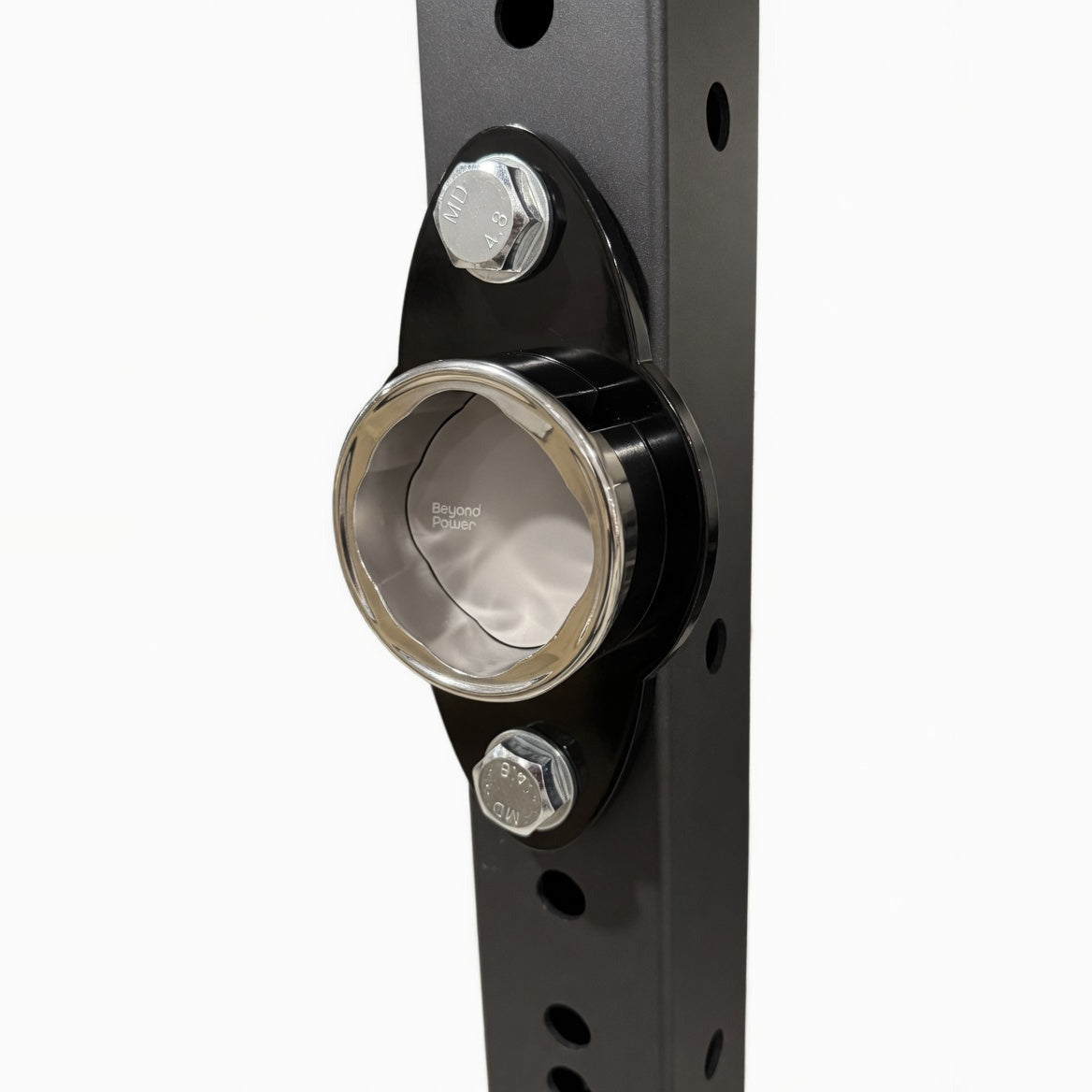

The Oval Mount adds a sleek, permanent mounting solution to your Beyond Power VOLTRA I workout station. It bolts directly onto your rack’s upright or cross member using two bolts that are at least ½" longer than your existing rack hardware. A chafe pad is included (it ships loose, not attached) to protect your rack from scratches and to provide the offset needed for DIY Dock mounting hardware.
For proper function and alignment, use standard-size bolts and keep the total hardware stack (bolt head plus any washer under it) under ½" (12.7 mm). This ensures the VOLTRA I docks correctly and can be used in either direction.
Install guide: Bolt-On Mount Installation Guide
Note: Bolts and DIY Dock are not included.
Proudly made in the USA.
Specifications
| Length | 4.25 in |
|---|---|
| Height | 0.25 in |
| Width | 7.6875 in |
| Weight | 1.775 lb |
| Weight with DIY Dock | 2.275 lb |
| Pin spacing | 6.0 in |
| Rack fit | Bolt-on to any rack or surface; 5/8" or 1" hole variants |
| Material | A36 steel, gloss black powder coat |
| Material thickness | 0.25 in |
| Included hardware | None provided — customer supplies mounting hardware |
| Notes | Weight 1 lb 12.4 oz without dock; 2 lb 4.4 oz with DIY Dock (shown as 1.775 lb / 2.275 lb). Height 0.250 in without dock; 1.250 in with DIY Dock (stainless dock is 1 in tall). Two mounting holes, 6 in center-to-center. Hole size 5/8" or 1" by variant. Bolts onto any rack or surface. Push pin not used — bolt-on only. Finish: gloss black powder coat. DIY Dock option is stainless steel. |
