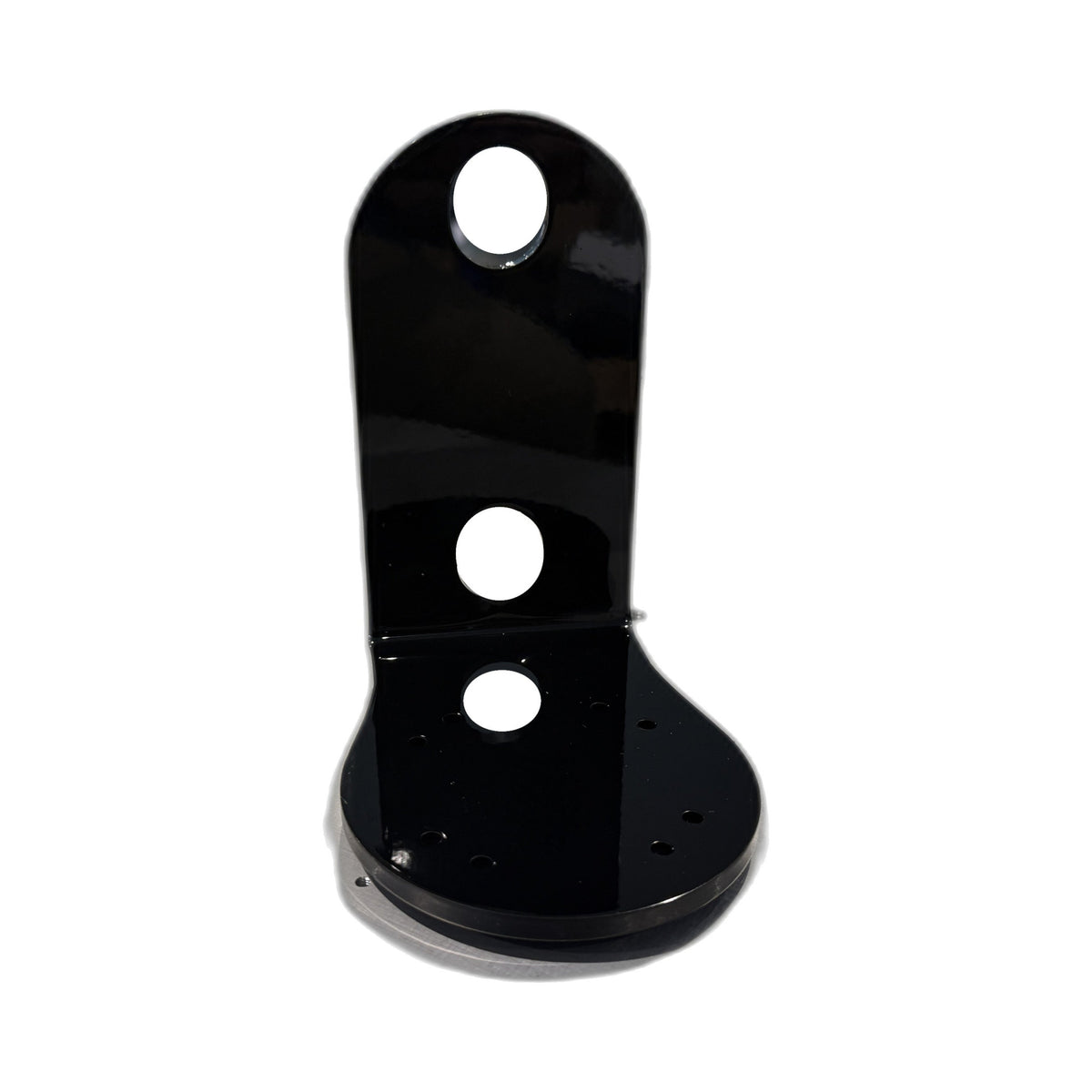

  • Compact Upright 4" — without DIY Dock (clean holes)
  • Compact Upright
  • Compact Upright
  • Compact Upright
  • Compact Upright

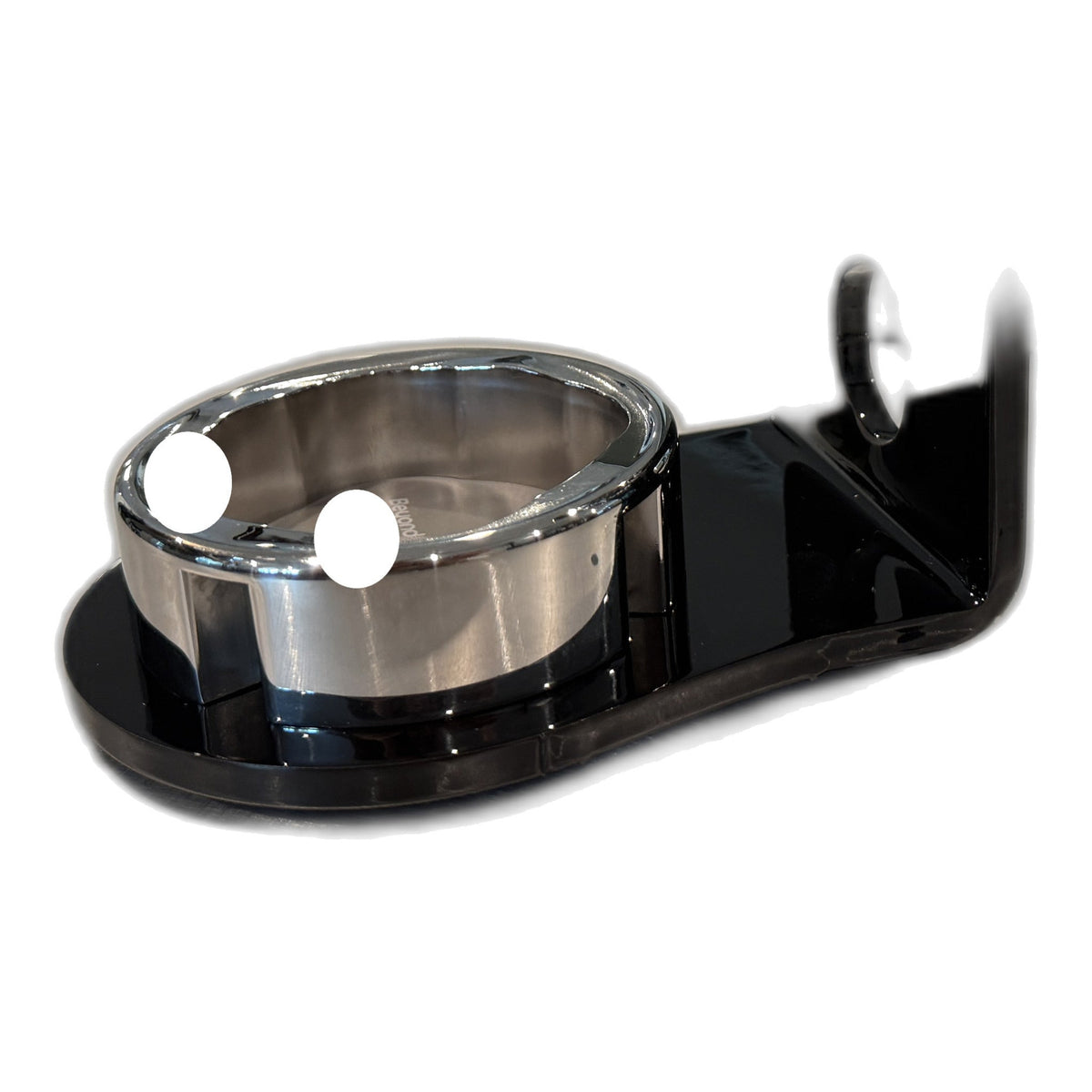

  • Compact Upright 4" — with DIY Dock (alt)

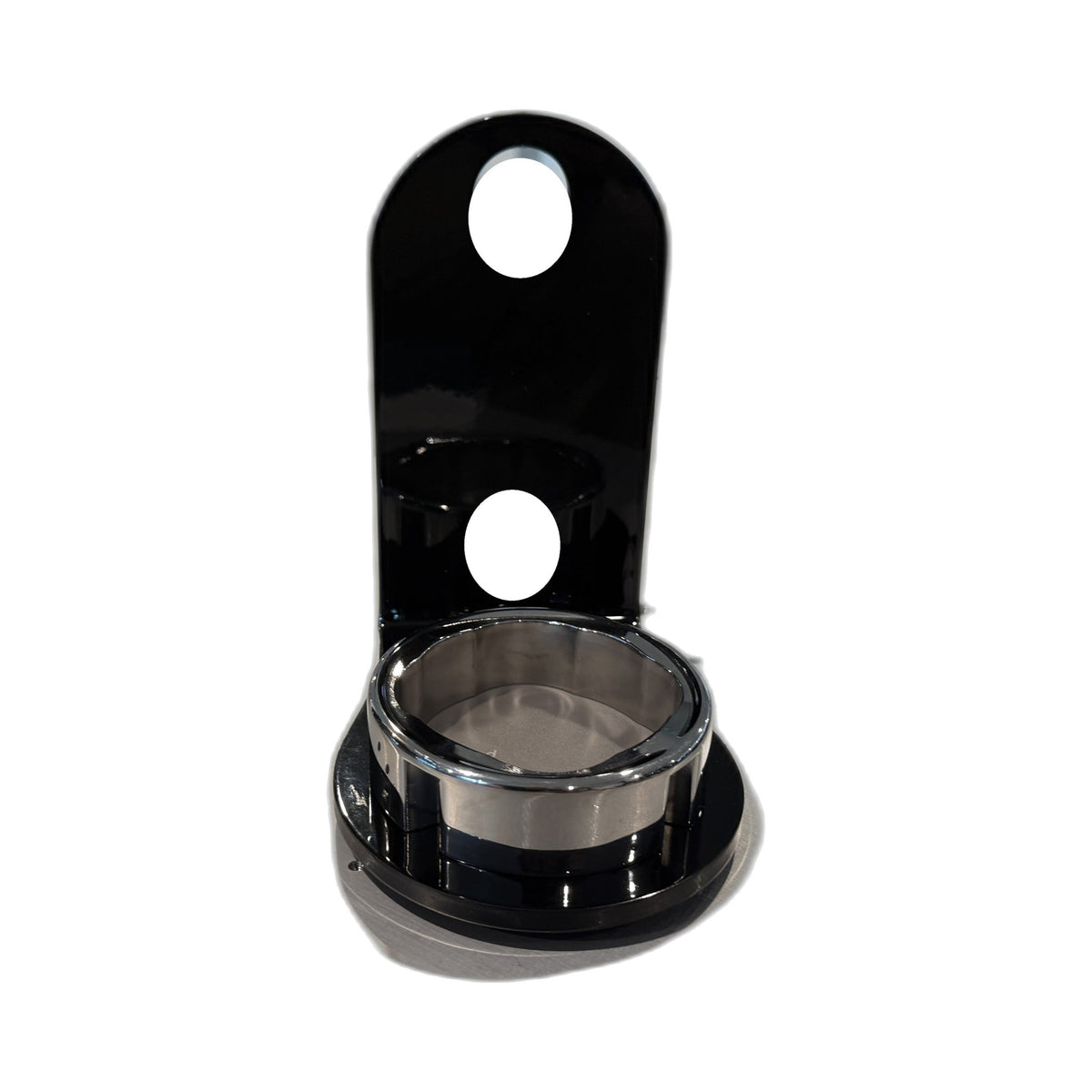

  • Compact Upright 4" — with DIY Dock (alt 2)
Compact Upright

Compact Upright

$60.00
$60.00
Shipping calculated at checkout.
Hole Size
Hole spacing
Choose: DIY Dock

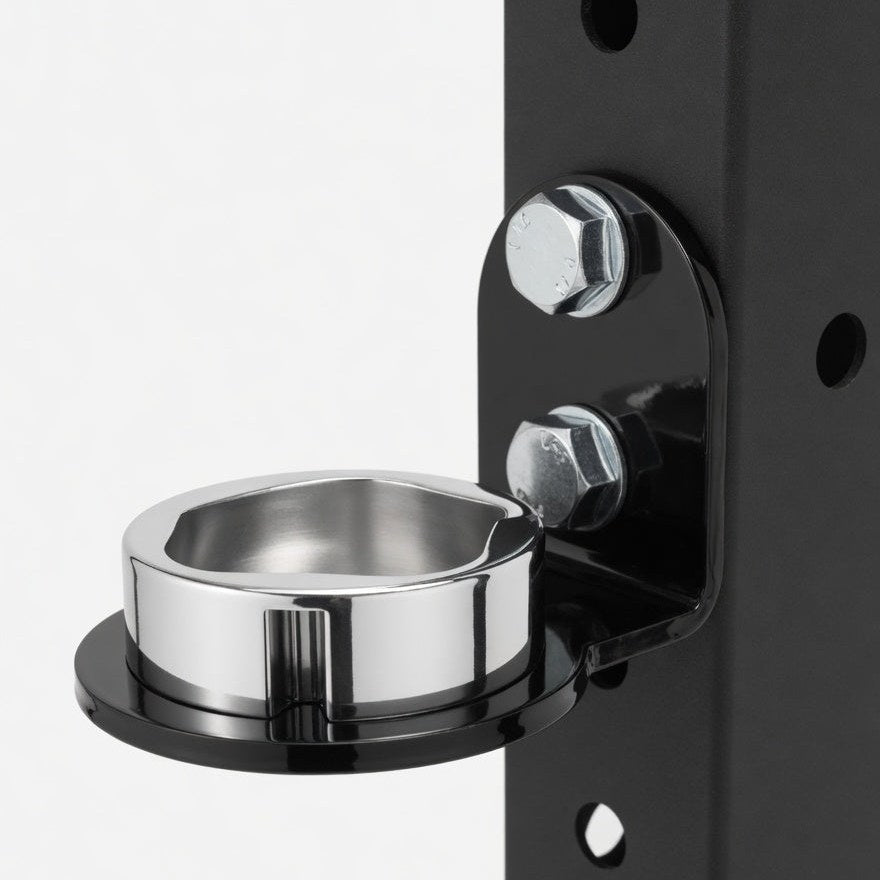

"Compact" Upright Mount for Beyond Power VOLTRA I – All 3x3 Racks | Bolt-On Attachment available in either 5/8" or 1" mounting holes.  Comes with 1mm chafe pad (ships loose, not attached), which goes between mount and rack to prevent marring of racks.

Spacing between bolt holes on rack is 2” on center for the 2” Compact and 4” on center for the 4” Compact, and two bolts are required to install properly.

Bolts must be at least 1/2" longer than your rack's existing bolts. That is a minimum; longer bolts are your choice.

Can be mounted with DIY Dock facing upward or downward depending upon your specific needs.

Install guide: Bolt-On Mount Installation Guide

Note:  DIY Dock and bolts not included.

United States flag Proudly made in the USA.
Specifications
Width4.125 in
Rack fitBolt-on; 1" or 5/8" holes; 2" or 4" hole spacing (to upright/crossmember)
MaterialA36 steel, gloss black powder coat
Material thickness0.25 in
Included hardwareNone provided — customer supplies mounting hardware
NotesTwo hole-spacing versions (mounts to upright/crossmember). Specs differ by hole spacing.

2" ON CENTER:
Height 4 3/16 in; width 4 1/8 in; depth 5 in. Two mounting holes, 2 in on center. Center of bottom hole is 1 1/2 in from the bottom of the mount. Weight 1.6875 lb (1 lb 11 oz) without dock; 2.1875 lb (2 lb 3.0 oz) with DIY Dock. Offset is from the side of the mount to the center of the DIY dock (2 7/8 in). Clearance from the face of the mount to the side of the VOLTRA I when installed is 0.75 in (3/4 in).

4" ON CENTER:
Height 6 1/4 in; width 4 1/8 in at widest point; depth 5 1/2 in. Two mounting holes, 4 in on center. Center of bottom hole is 1 3/8 in from the bottom of the plate. Weight 2.35 lb (2 lb 5.6 oz) without dock; 2.8438 lb (2 lb 13.5 oz) with DIY Dock. Offset is from the face of the mount to the center of the DIY dock (1 3/16 in). Clearance from the side of the mount to the side of the VOLTRA I when installed is 1 3/16 in.

SHARED: A36 steel, 0.250 in thick, gloss black powder coat. Bolt-on; 1" or 5/8" holes. No M10 threaded hole; no carabiner hole.
