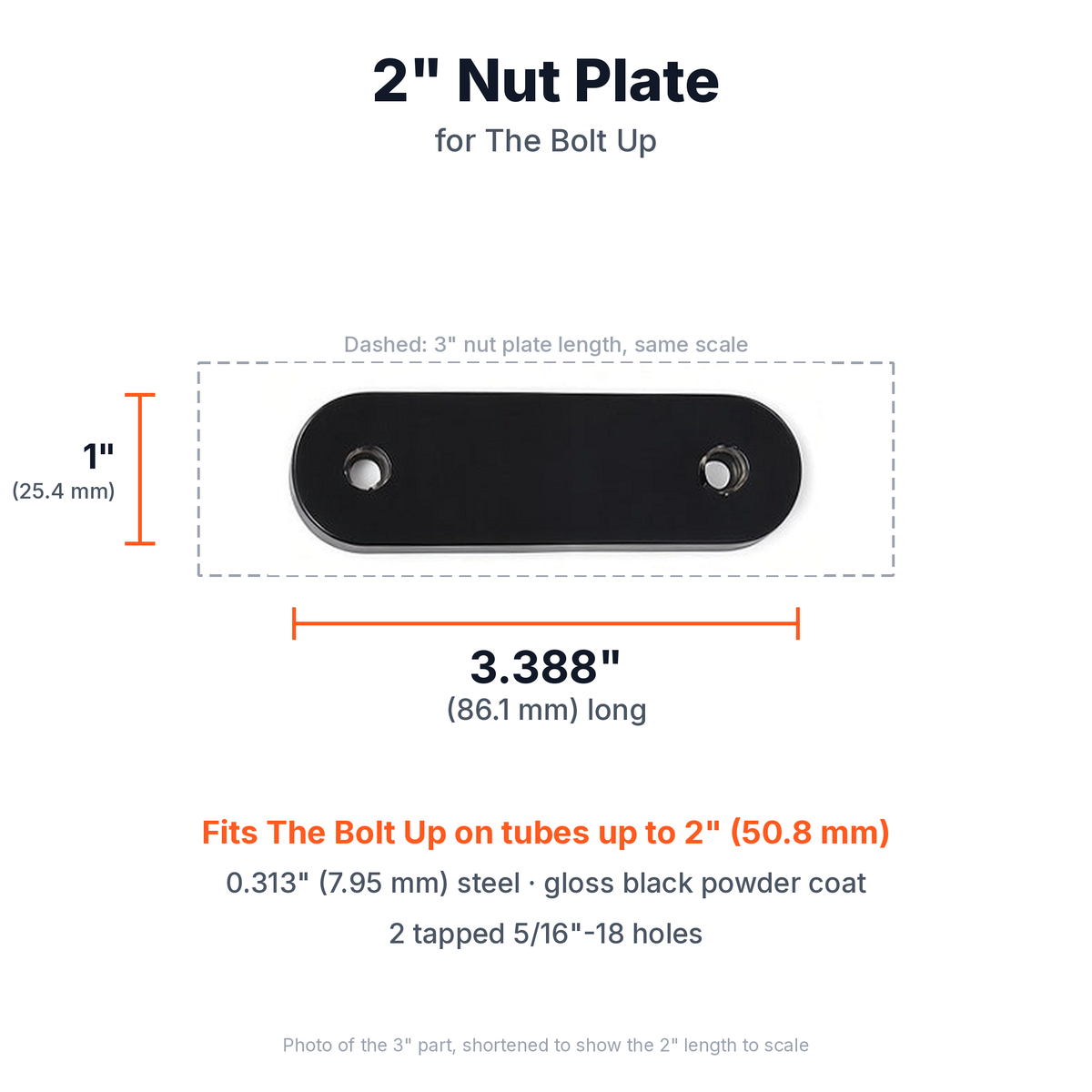

Bolt Up 2 inch nut plate, 3.388 by 1 inch (86.1 by 25.4 mm), 0.313 inch steel, gloss black powder coat, 2 tapped 5/16-18 holes. For tubes up to 2 inches.

Bolt Up Nut Plate

2″
$14.00
$14.00
Skip to product information
Bolt Up 2 inch nut plate, 3.388 by 1 inch (86.1 by 25.4 mm), 0.313 inch steel, gloss black powder coat, 2 tapped 5/16-18 holes. For tubes up to 2 inches.
  • Bolt Up 2 inch nut plate, 3.388 by 1 inch (86.1 by 25.4 mm), 0.313 inch steel, gloss black powder coat, 2 tapped 5/16-18 holes. For tubes up to 2 inches.
Bolt Up Nut Plate

Bolt Up Nut Plate

$14.00
$14.00
Shipping calculated at checkout.
Nut Plate

Bolt Up Nut Plate is a nut plate set for The Bolt Up: two 2-hole nut plates, the same set that ships with The Bolt Up. Choose 2" or 3".

Which size do I need?

  • 2" nut plates: tubes up to 2" (50.8 mm). Turn The Bolt Up so its bolts sit 2.50" (63.5 mm) on center across the tube.
  • 3" nut plates: tubes 2" to 3" (50.8 to 76.2 mm). The bolts sit 3.66" (93.0 mm) on center across the tube.
  • Strap, belt, or portable attachment (1" bolts): works with either size.
Top view of The Bolt Up on two tubes at the same scale. Left: 2 to 3 inch tube with the bolts 3.66 inches on center and two 3 inch nut plates under the tube. Right: up to 2 inch tube with The Bolt Up rotated 90 degrees, bolts 2.50 inches on center, and two 2 inch nut plates under the tube.
The Bolt Up can be rotated 90°. Turn it so the bolts sit closest to your tube. A 2" tube takes 2" nut plates; a 3" tube takes 3" nut plates.

What’s included

  • Two 2-hole nut plates (2" or 3")
  • 2 small 1 mm chafe pads (1 per nut plate)

Specs

  • 2" nut plate: 3.388" x 1" (86.1 x 25.4 mm)
  • 3" nut plate: 4.667" x 1" (118.5 x 25.4 mm)
  • Material: 5/16" (0.313", 7.95 mm) A36 mild steel. Gloss black powder coat.
  • 2 tapped 5/16"-18 holes per plate

Note: The Bolt Up and bolts are not included. Full install steps: The Bolt Up Installation Guide.
