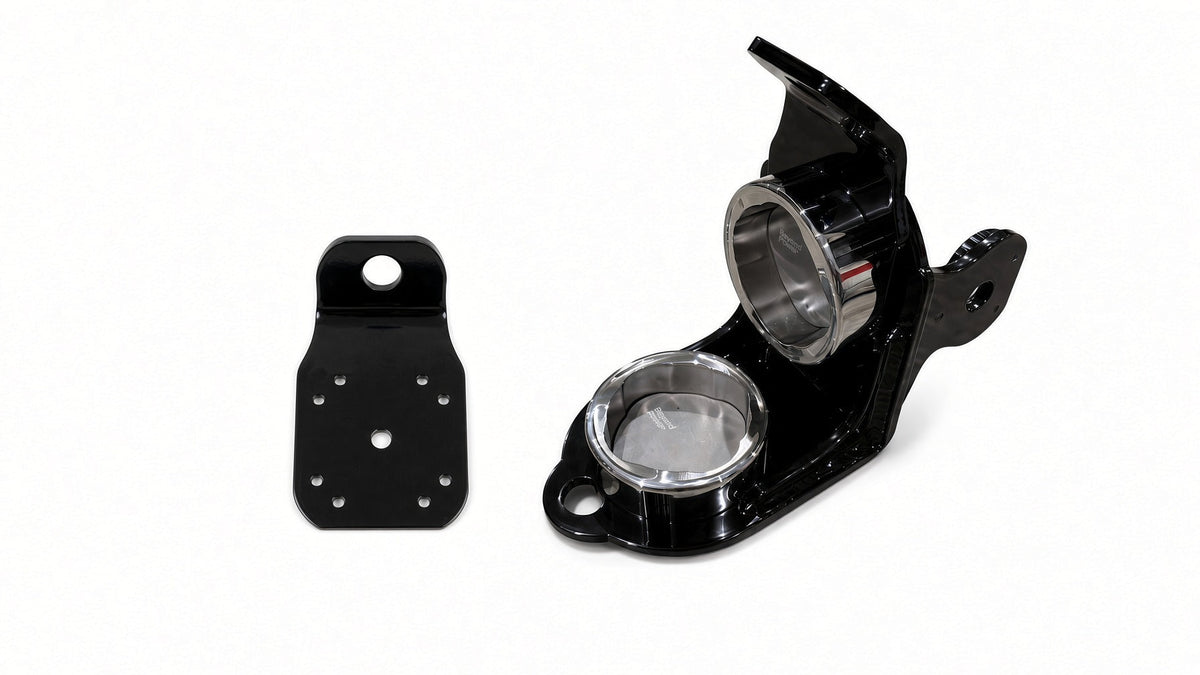

Omni Mount Doubling Plate Installation Instructions
For the Voltra Mounts Omni Doubling Plate on the Omni Mount
Thank you for choosing Voltra Mounts. These instructions provide a clear, professional procedure for installing the Omni Doubling Plate onto the Omni Mount with the included M4 × 0.7 screws. Following these steps ensures even clamping, protects stainless threads, and keeps the plate flat and secure.
Required Tools & Hardware
| Tool / Item | Description / Notes |
|---|---|
| Omni Mount | The mount the Doubling Plate bolts onto |
| Omni Doubling Plate | Voltra Mounts adapter plate |
| M4 × 0.7 screws | Matching quantity supplied with the plate / kit |
| Torque screwdriver or low-range torque wrench | Capable of accurate ~2.0–2.5 Nm (18–22 in-lb) readings |
| Mild thread locker (optional) | Low/medium strength (e.g. blue); encourage if fasteners are not already treated |
| Soft work surface | Protects powder coat finish |
Critical Installation Specifications
Screw specification: M4 × 0.7 into stainless steel
Torque method: Star / cross pattern in three progressive stages. Do not jump straight to final torque.
| Condition | Final Torque | Notes |
|---|---|---|
| Final torque | 2.0–2.5 Nm (18–22 in-lb) | Stay in this range |
| Recommended target | 2.2–2.3 Nm (19–20 in-lb) | Best balance of clamp and thread care |
Progressive Torque Sequence
| Stage | Target | Action |
|---|---|---|
| Stage 1 | Snug / finger-tight | Bring all screws to light contact in star pattern |
| Stage 2 | ~50% (~1.0–1.25 Nm / ~9–11 in-lb) | Increase evenly in the same pattern |
| Stage 3 (Final) | 2.0–2.5 Nm (18–22 in-lb) | Final torque in the same pattern, then one verification pass |
Step-by-Step Installation Procedure
Step 1 — Prepare Surfaces
Place the Omni Mount on a soft, protected work surface. Clean the mating faces of the Omni Mount and the Doubling Plate. Inspect every screw and hole for wear, deformation, galling marks, or other damage. Replace any fastener that looks suspect before you continue.
Step 2 — Align the Doubling Plate
Place the Doubling Plate on the Omni Mount so all holes line up cleanly. Confirm the plate sits flat against the mount with no rock or gap before installing fasteners.
⚠️ STOP: If the plate rocks, wobbles, or leaves a gap, stop and resolve it before proceeding. Do not torque fasteners over a non-flat fit.
Alignment check: The plate must be fully seated and square before any torque is applied.
Step 3 — Start Screws by Hand
Thread each M4 × 0.7 screw in by hand 2–3 turns. Do not force them. If a screw binds, back it out, inspect and clean the threads, replace the fastener if it looks suspect, and realign.
Step 4 — Snug in Star Pattern
Bring all screws to light finger-tight using the star / cross order. Do not final-torque yet.
Step 5 — Thread Locker (If Needed)
If the screws are not already treated with a mild (low/medium strength) thread locker, apply a small amount of mild thread locker to the screw threads before final tightening. Do not use a high-strength (permanent) locker on these fasteners.
Step 6 — Progressive Torque (Critical)
Follow the three-stage sequence above. Keep the same star pattern on every pass. End with one extra verification pass at final torque.
Step 7 — Final Inspection
- Every screw is within the listed final torque range (2.0–2.5 Nm / 18–22 in-lb).
- The Doubling Plate is fully seated, flush, and square with no rock.
- No screw shows binding, damaged threads, or incomplete engagement.
- Powder coat and mating faces are free of burrs or debris trapped under the plate.
Maintenance Recommendations
- Re-check torque on the Omni Doubling Plate M4 × 0.7 screws (2.0–2.5 Nm / 18–22 in-lb; recommended target 2.2–2.3 Nm / 19–20 in-lb) after the first few training sessions, then about every 90 days (or sooner if you train hard / under heavy dynamic loads).
- Keep the Doubling Plate and Omni Mount mating surfaces clean. Wipe away chalk, sweat, and grit that can affect seating in the tight gusset clearance.
- About every 90 days, inspect the Doubling Plate, Omni Mount, and fasteners for wear, coating damage at contact points, or fastener loosening.
- If you remove and reinstall screws, inspect threads again, replace any fastener that looks suspect, and reapply mild (low/medium) thread locker if the screws are not already treated.
