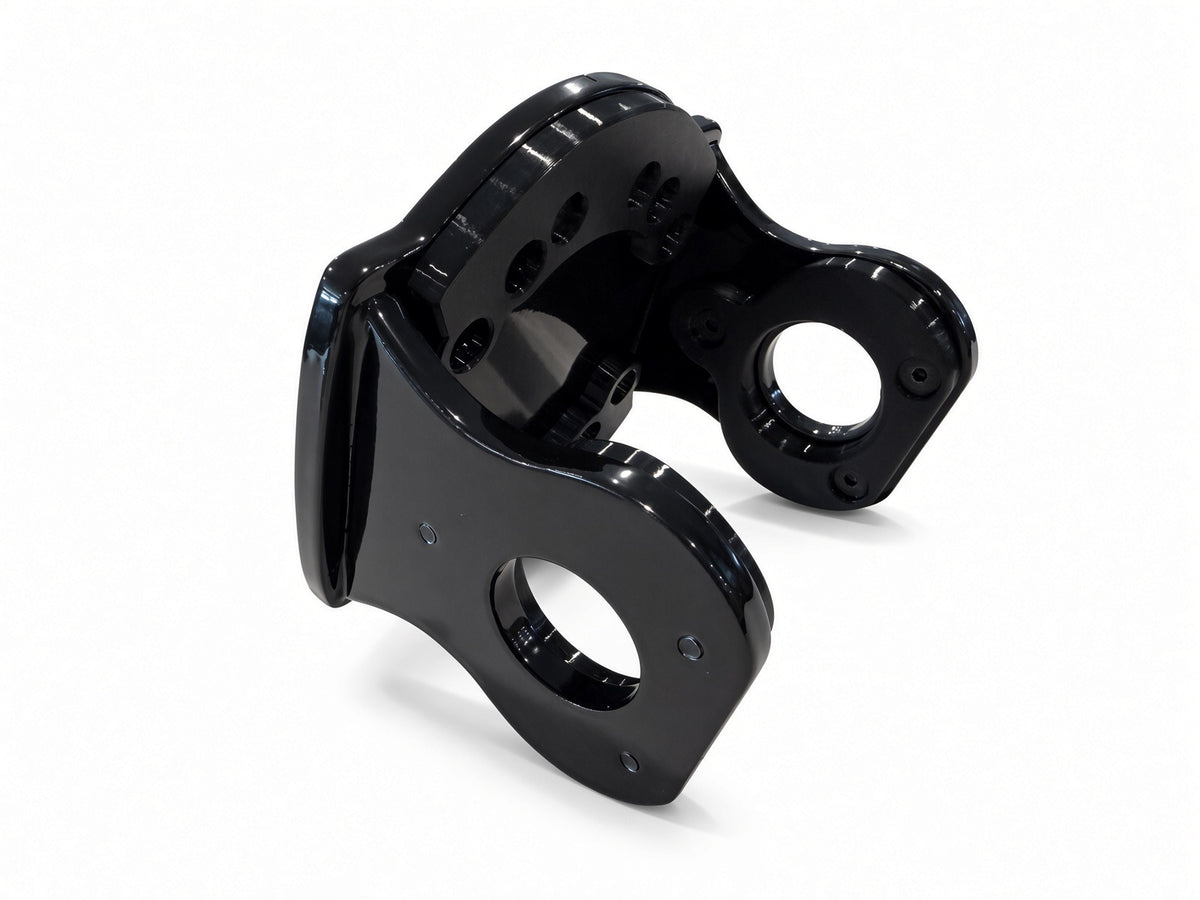

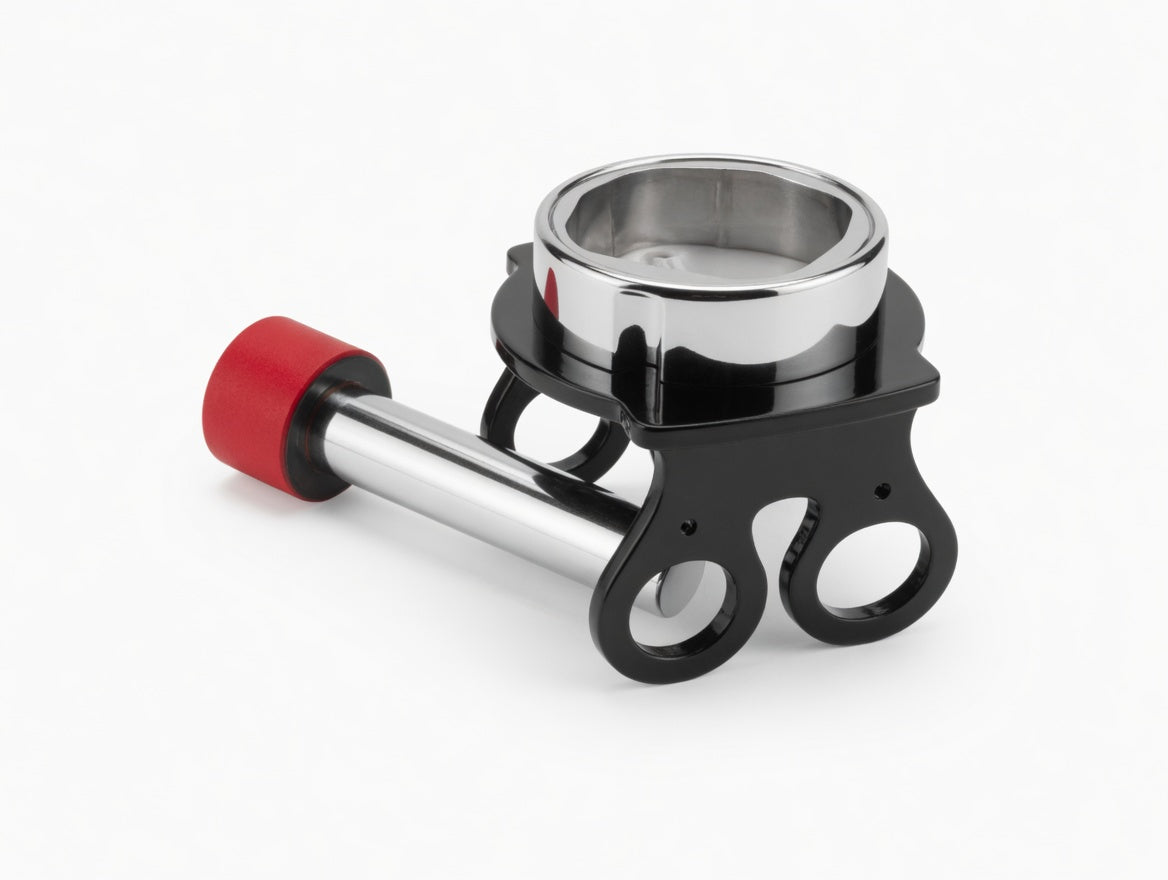

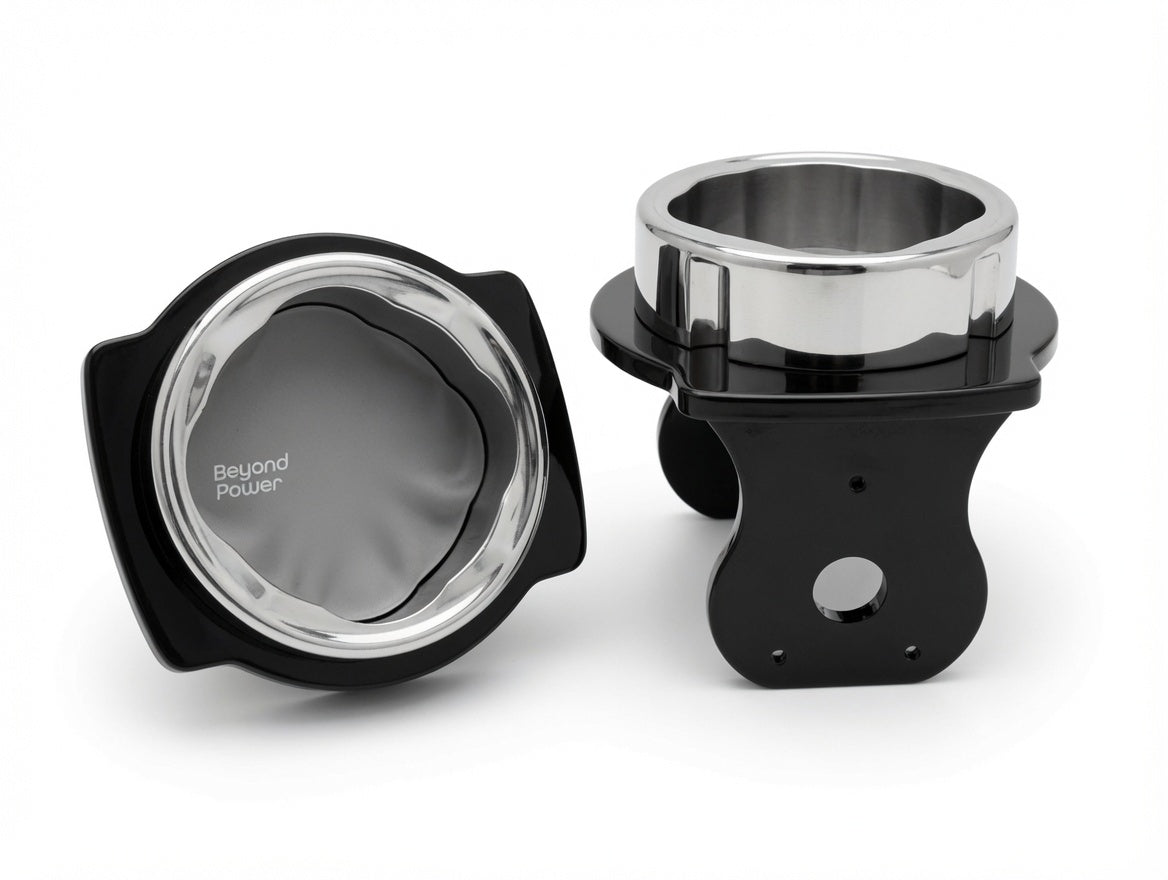

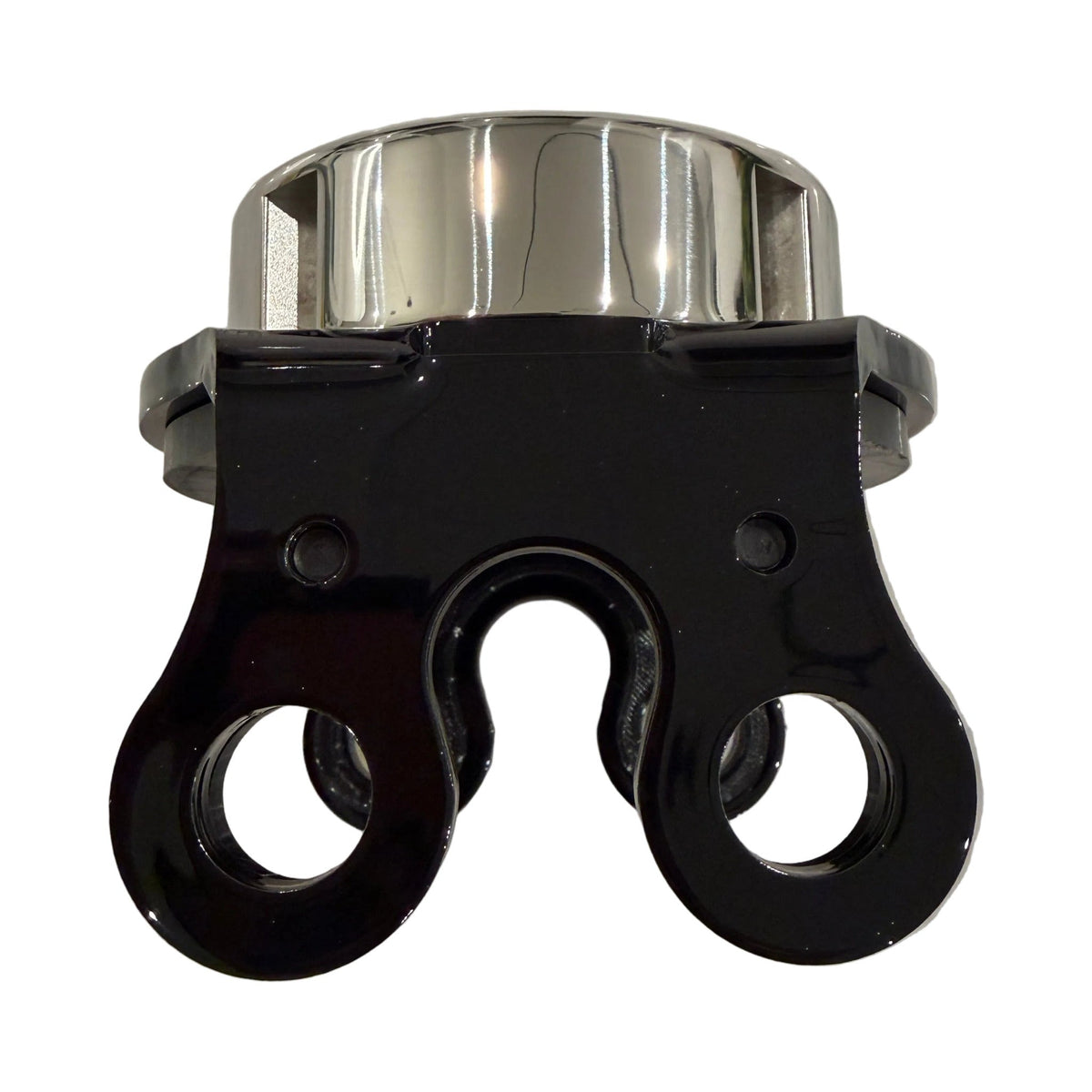

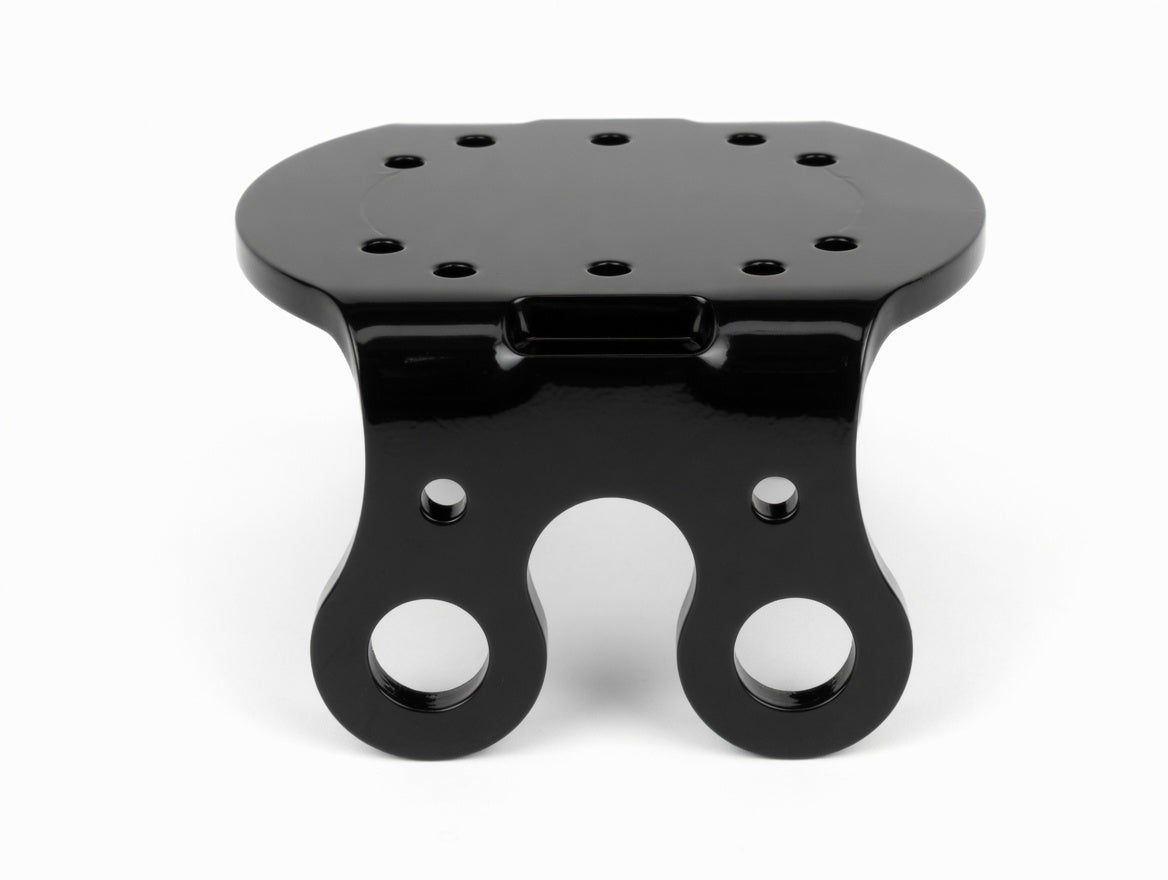

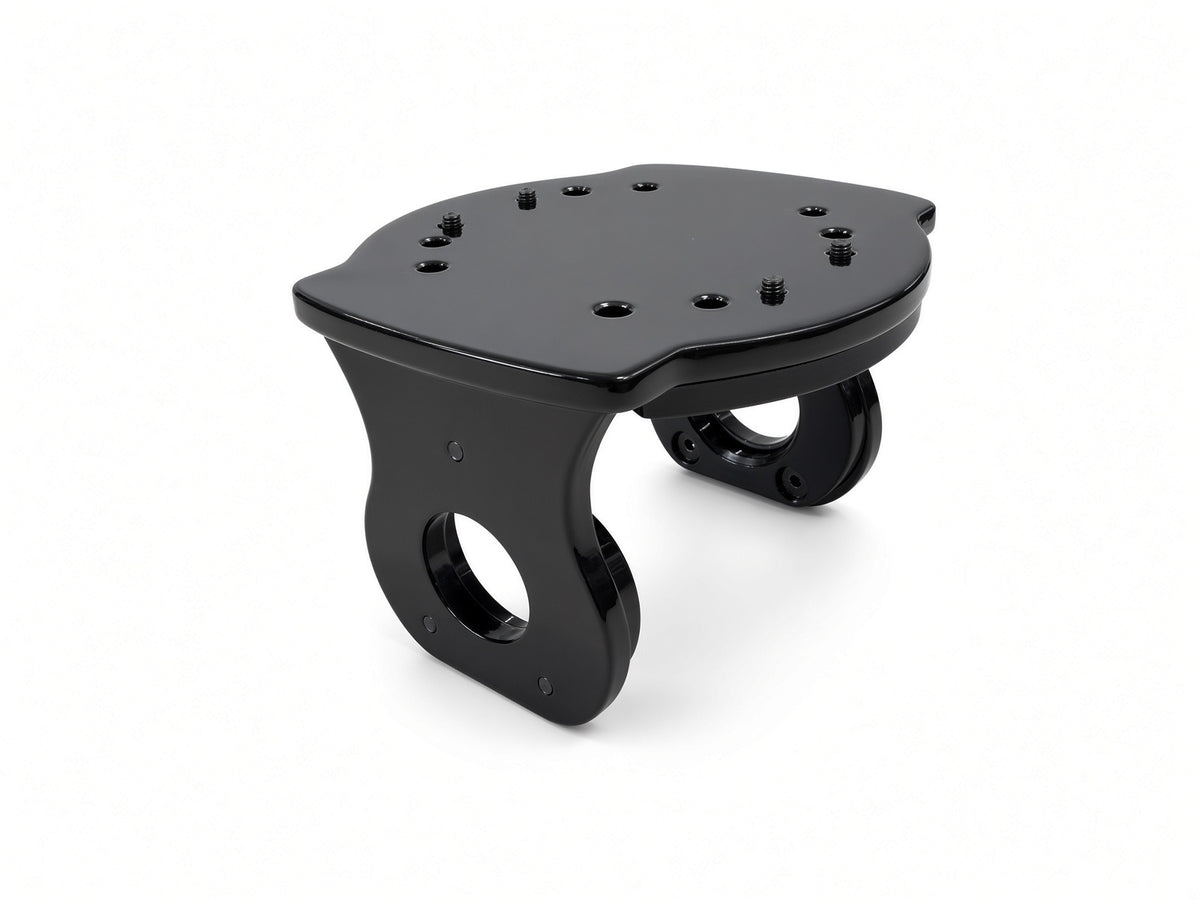

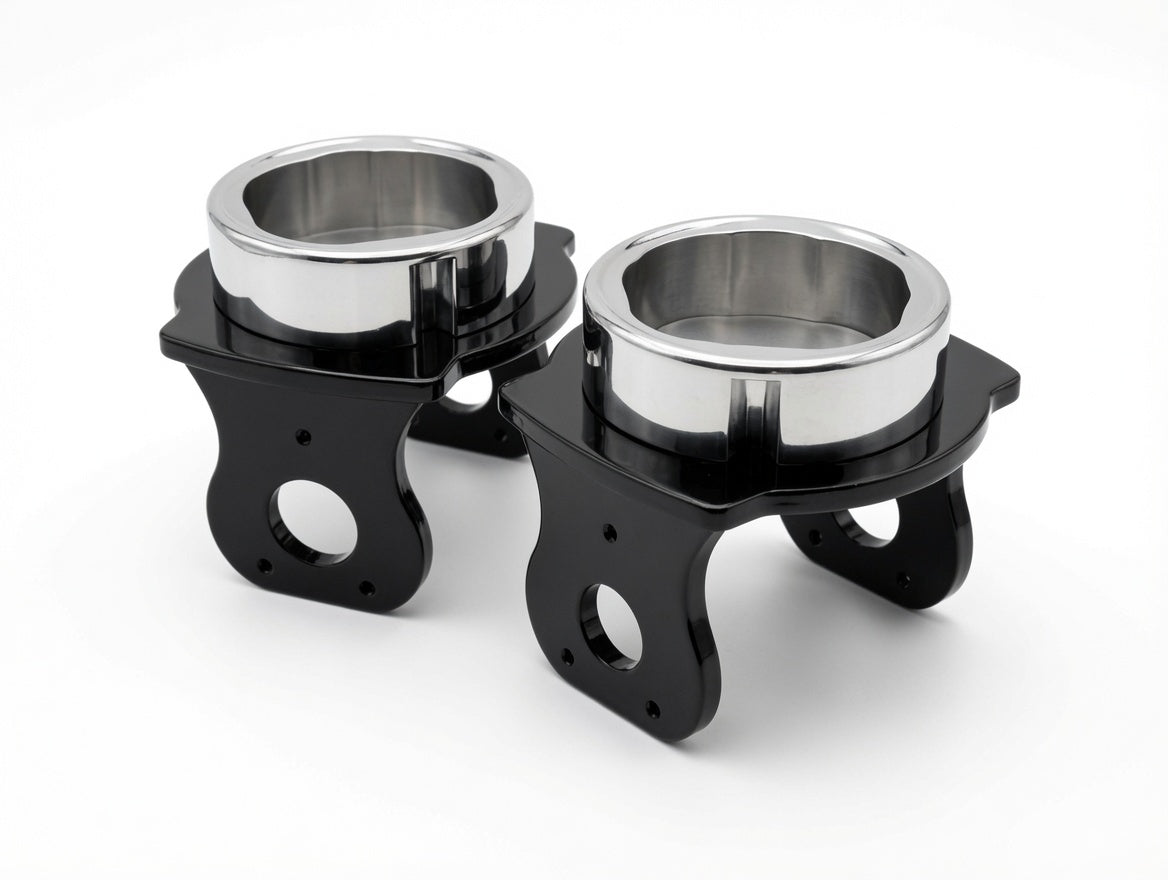

Evolver Standard 3x3
Evolver Standard 3x3 is designed to securely attach your Beyond Power VOLTRA I to any standard 3x3 power rack using a 1" or 5/8" push pin (not included). Choose Single Pin or Dual Pin to suit your rack.
This Mount is part of the Evolver family and shares the lean fit of the Single Pin Tight Spot. It sits tight on the rack, and its slim, low-profile design takes up very little space, so it fits narrow or tight spots on your uprights.
It's not the Evolver Flat Foot. It's a matching Mount made to go with it, so if you want the same look on your 3x3 rack, the Evolver Standard keeps your setup consistent.
Single Pin or Dual Pin
- Single Pin: attaches through one hole in your upright with one push pin (not included)
- Dual Pin: attaches through two holes in your upright with two push pins (not included) for an extra-stable connection
Fit
- Rack: standard 3x3
- Device: Beyond Power VOLTRA I
- Pin type: Single Pin or Dual Pin
- Hole size: 1" or 5/8" push pin (not included)
- DIY Dock optional (one Dock when that option is selected)
What’s included
- Chafe pad shims for a tighter fit and reduced movement
- Allen wrench for adjustments
- One DIY Dock when that option is selected
Where the Evolver line began
The Evolver Standard was the first Mount in the Evolver line. Its design led to the Evolver Deep Drop, the Inline and Cross doublers, and others such as the Side-by-Side and Over-Under.
Note: Push pins are not included. A DIY Dock is included only when that option is selected.
Proudly made in the USA.
Specifications
| Length | 4.249 in |
|---|---|
| Height | 3.0 in |
| Width | 4.434 in |
| Weight | 1.85 lb |
| Weight with DIY Dock | 2.35 lb |
| Rack fit | 3x3 imperial or metric (incl. 75mm) with 5/8" or 1" push pin (not included) |
| Material | A36 steel, gloss black powder coat |
| Material thickness | 0.25 in |
| Included hardware | 6 × M4-0.7 × 10 mm flat-head socket cap screw 4 × M4-0.7 × 12 mm flat-head socket cap screw |
