Side Mount
1" Holes / Mount only / Standard (3")
$70.00
Sale price
$70.00
Regular price
Skip to product information
Side Mount
$70.00
Sale price
$70.00
Regular price
Shipping calculated at checkout.
The Side Mount is a fixed offset mount for the Beyond Power VOLTRA I. It bolts directly onto a standard 3×3 rack or similar upright or cross member for a permanent, secure attachment.
Fit
- Bolts onto your upright or cross member with two bolts that are at least 1/2" longer than your existing rack bolts (bolts not included)
- Can be flipped 180° to suit your setup
- DIY Dock attaches to the top or bottom of the plate
- Hole size: 1" or 5/8"

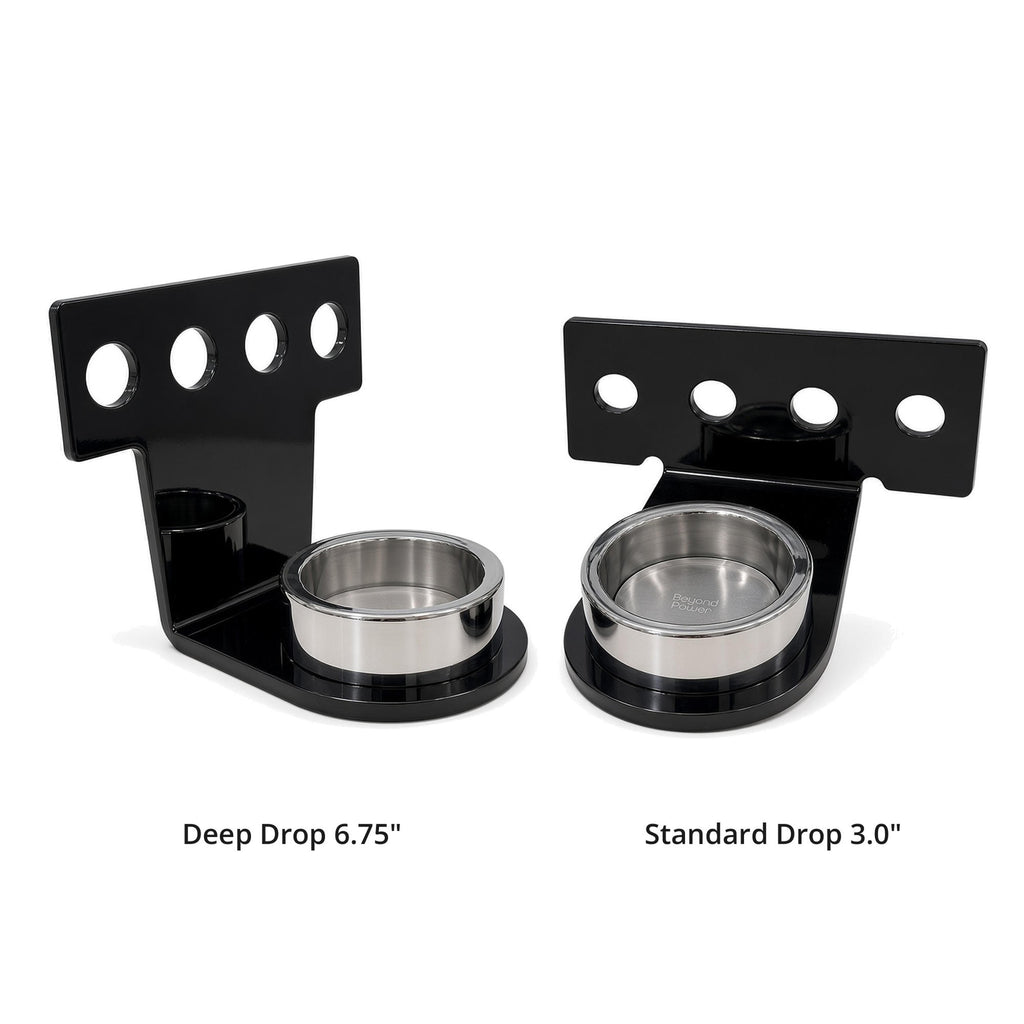

- Drop: Standard (3") or Deep (6 1/2")
Standard (3")
- Shorter drop (VOLTRA sits higher)
- Plate depth: 6"
- Rack face to dock center: 2 5/8"
Deep (6 1/2")
- Longer drop (VOLTRA sits lower)
- Plate depth: 5 1/4"
- Rack face to dock center: 3 1/8"
What’s included
- The mount plate
- A chafe pad (ships loose, not attached)
- One DIY Dock when that option is selected
Install guide: Bolt-On Mount Installation Guide
Note: Mounting bolts are not included.
Proudly made in the USA.
Specifications
| Length | 6.0 in |
|---|---|
| Height | 3.0 in |
| Width | 8.0 in |
| Weight | 2.8625 lb |
| Weight with DIY Dock | 3.35 lb |
| Drop | 3.0 in |
| Offset | 2.625 in |
| Pin spacing | 2.0 in |
| Rack fit | Bolt-on; 1" or 5/8" holes |
| Material | A36 steel, gloss black powder coat |
| Material thickness | 0.25 in |
| Included hardware | None provided — customer supplies mounting hardware |
| Notes | Deep (6 1/2"): length 5.25 in; height 6.5 in; weight 3.925 lb / 4.425 lb with DIY Dock; offset 3.125 in. Mounting holes 2 in on center (6 in outside-to-outside). No M10 doubling/lifting hole; no carabiner hole. |
