The Bolt Up Fixed 60°
3" / Mount only
$158.00
Sale price
$158.00
Regular price
Skip to product information
New Release
The Bolt Up Fixed 60°
$158.00
Sale price
$158.00
Regular price
Shipping calculated at checkout.

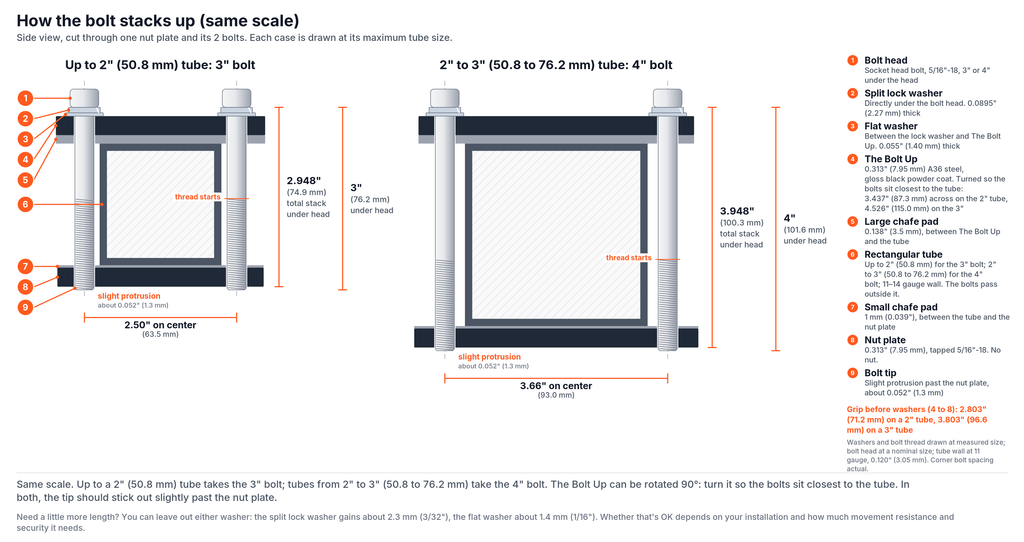

Which bolt and nut plate?
All bolts are 5/16-18 socket head. Pick the length for what you're mounting to:
- 3" bolts: tubes up to 2"
- 4" bolts: tubes 2" to 3"
The nut plate is 0.313" thick and tapped 5/16-18. Built for 11–14 gauge tube walls, which is typical for home gym racks.
New to bolt-on Mounts? See the install guide for step-by-step setup.
Coming soon. The Bolt Up Fixed 60° is not available yet. Sign up now to be notified the moment it's available.

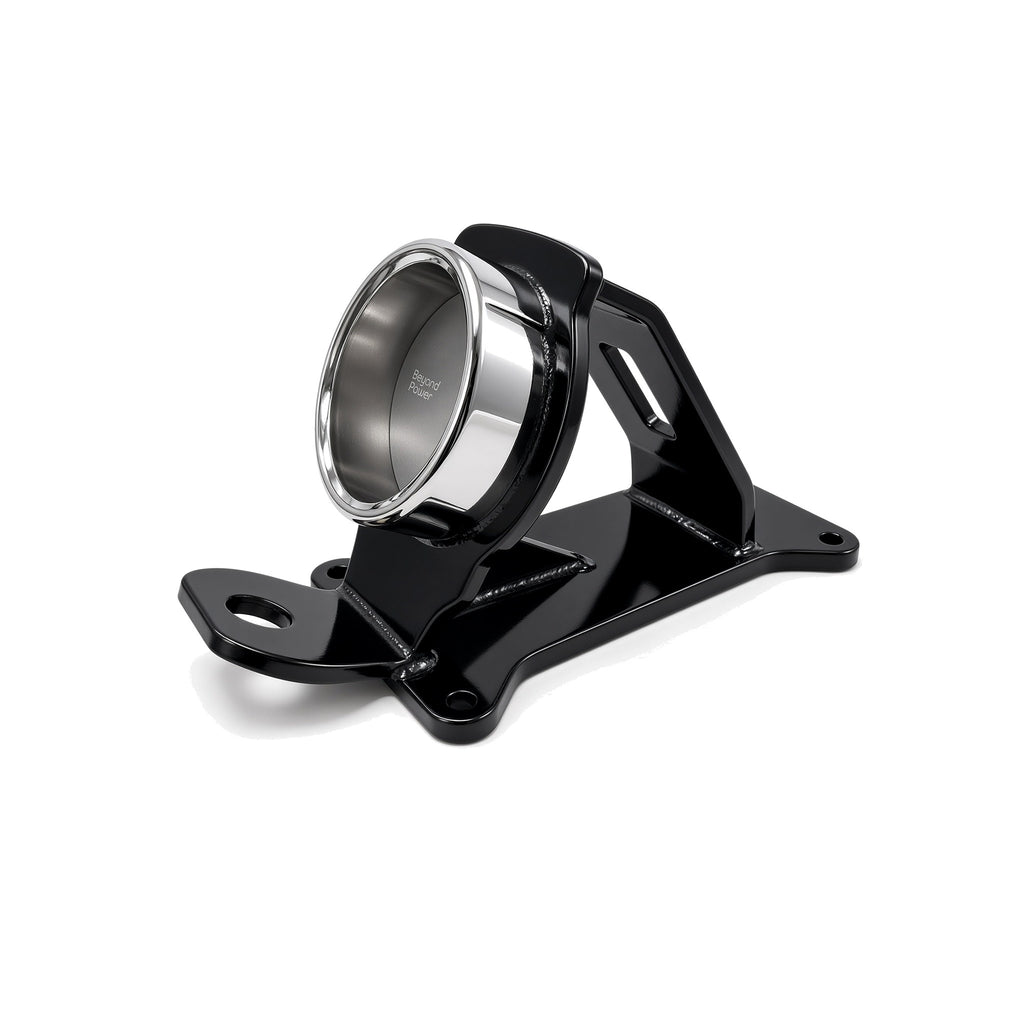

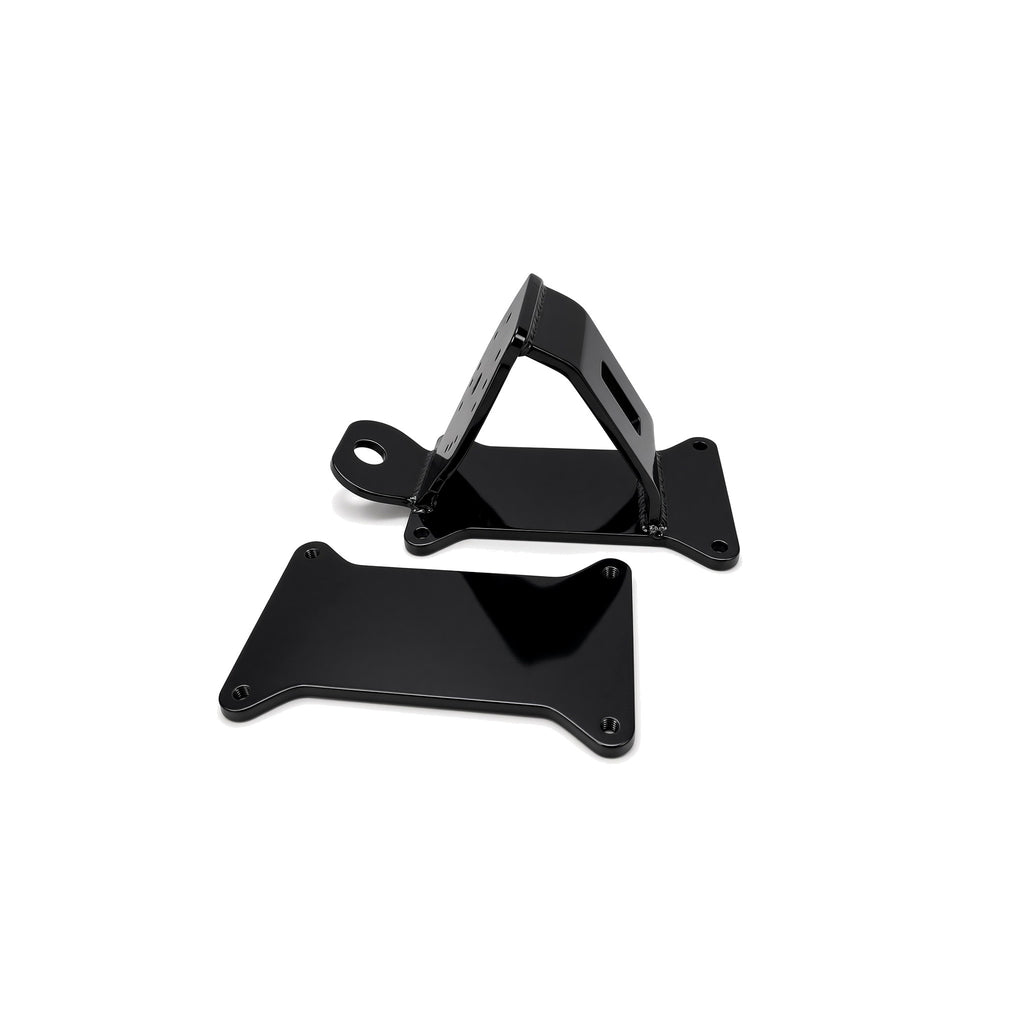

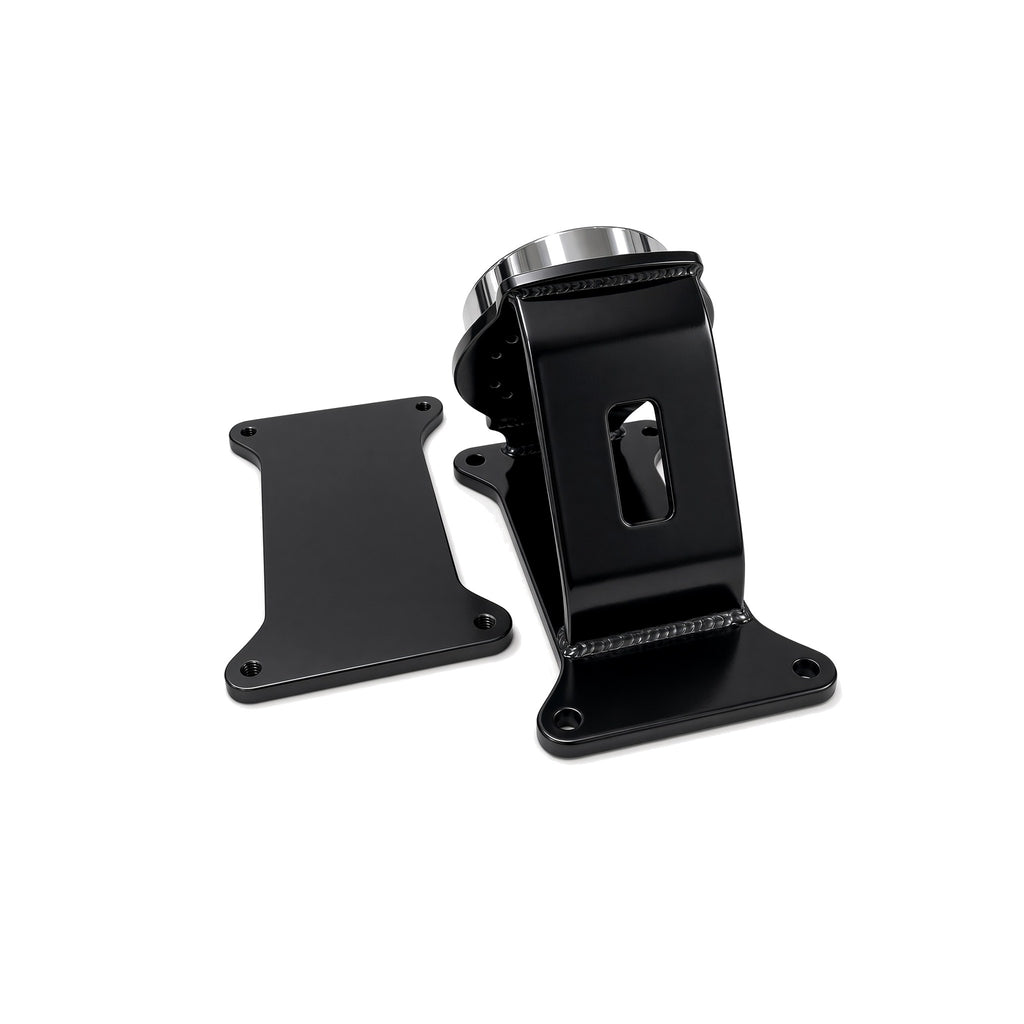

The Bolt Up Fixed 60° is a bolt-on Mount for the Beyond Power VOLTRA I. Its DIY Dock plate is set at a fixed 60° angle, and it is built for 2:1 doubling. It attaches to square tubes from 2" up to 3" wide with four 5/16"-18 bolts and holds one DIY Dock (included with the With DIY Dock option).
This is a fixed-angle version of The Bolt Up. The Dock plate angle does not adjust.
Fit
- Square tubes from 2" up to 3" wide
- Attaches with four 5/16"-18 bolts
- Holds one DIY Dock at a fixed 60° angle (included with the With DIY Dock option)
- Built for 2:1 doubling, with a doubling attachment point

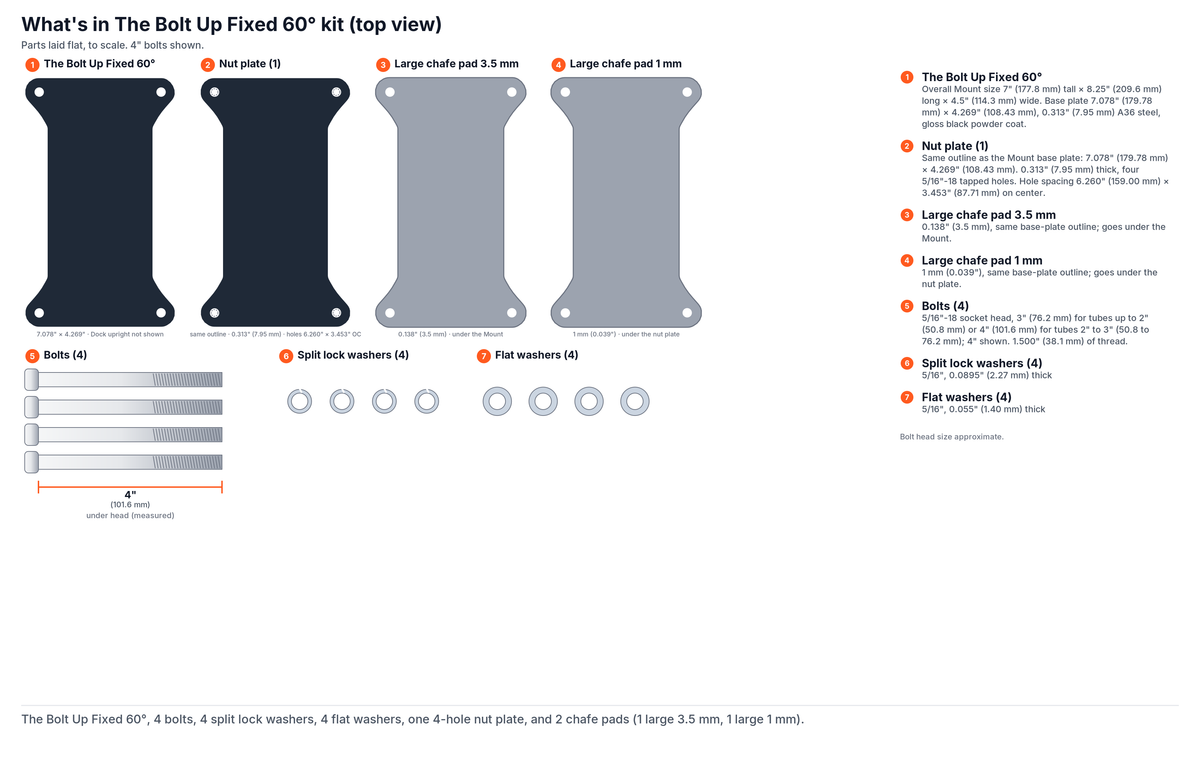

What’s included
- The Bolt Up Fixed 60°
- Four 5/16"-18 bolts in your choice of 3" or 4" length
- 3" bolts: tubes up to 2"
- 4" bolts: tubes 2" to 3"
- Four flat washers and four split lock washers
- Ships with one 4-hole nut plate
- 2 chafe pads (1 large 3.5 mm, 1 large 1 mm)
- Tool needed: 1/4″ Allen wrench (not included).
Specs
- Material: 5/16" (0.313") A36 steel, CNC laser-cut and laser-welded. Gloss black powder coat.
- Dimensions: 7" tall × 8-1/4" (8.25") long × 4-1/2" (4.5") wide
Note: A DIY Dock is included with the With DIY Dock option; otherwise it is not included. The VOLTRA I and the rack shown in product images are not included.
Proudly made in the USA.
Specifications
| Length | 8.25 in |
|---|---|
| Height | 7.0 in |
| Width | 4.5 in |
| Rack fit | Square tubes from 2 in up to 3 in wide |
| Material | A36 steel, gloss black powder coat |
| Material thickness | 0.313 in |
| Included hardware | • 4× 5/16″-18 bolts, 3″ or 4″ (your choice) • 4× flat washers • 4× split lock washers • 1× 4-hole nut plate • 2× chafe pads (1 large 3.5 mm, 1 large 1 mm) DIY Dock included only with the With DIY Dock option. VOLTRA I not included. |
| Notes | 5/16 in (0.313 in) A36 steel, gloss black powder coat. Fixed 60° DIY Dock plate, built for 2:1 doubling. Bolts onto square tubes from 2 in up to 3 in wide using four 5/16″-18 bolts. Ships with one 4-hole nut plate. 3″ bolts for tubes up to 2 in; 4″ bolts for tubes 2 in to 3 in. |
